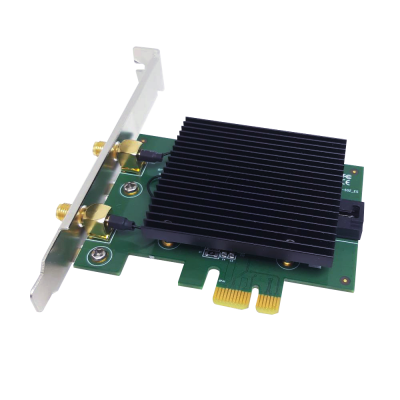

EW-7122PEX

Wi-Fi 6E PCIe add-on card

  • Comply with IEEE 802.11a/b/g/n/ac/ax standards.
  • Supports dual band frequency- 2.4GHz / 5GHz/ 6GHz

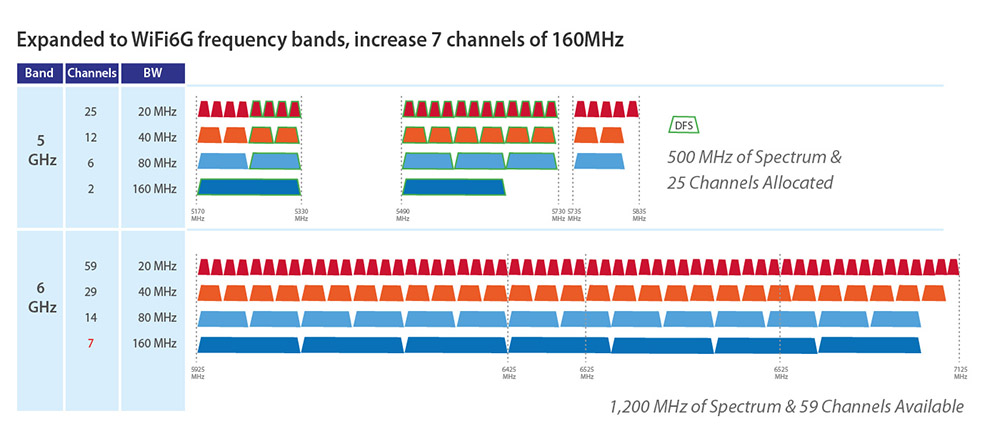

  • Wide 160MHz Channels-Next gen Wi-Fi and 2X Speed
  • Very high transfer data rate  – up to 574Mbps @ 2.4GHz or up to 2402Mbps @ 5GHz & 6GHz.
  • Supports Bluetooth 5.2
  • Supports Wave-2 compliant MU-MIMO
  • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security
WiFi 6E
Tri Band Selectable
Inquiry


Tri-band selectable, up to 2.4GHz 573Mbps/ 5GHz 2400Mbps/6GHz 2400Mbps
Product EW-7122PEX
Main Chipset
Intel AX210
Bus Type
PCI Express x1 interface for Wi-Fi
​USB for BLE5.2
Frequency Band
2.4000~2.4835GHz ,
5.150~5.825GHz,
5.925~7.125GHz
(subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
11ax (40MHz): VHTMCS11, up to 574Mbps
11ax (160MHz): VHTMCS11, up to 2402Mbps
Antenna
External tri-band Antennas R-SMA x 2
Drivers
Windows 10
