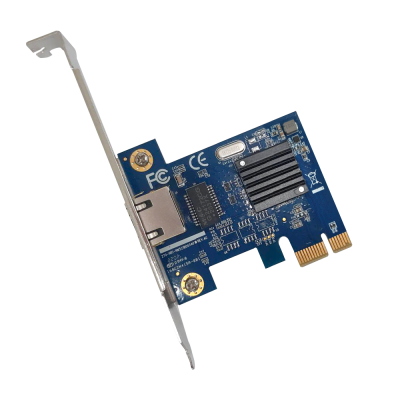

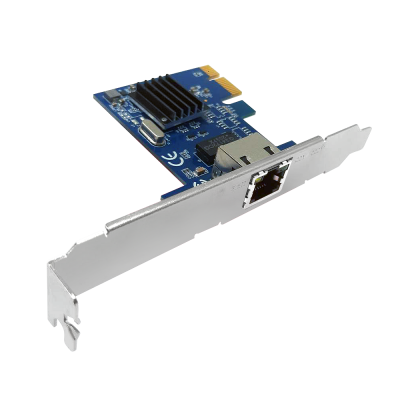

EX-8101P 2.0

2.5GbE PCIe Adapter

  • Integrated 10M BASE-Te and 100/1000M/2.5G BASE-T 802.3 compatible transceiver.
  • Supports 2.5G Lite (1G data rate) mode
  • Compatible with NBASE-TTM Alliance PHY Specification
  • Supports PCI Express 2.1
  • Supports 1-Lane 2.5/5Gbps PCI Express Bus
  • Configurable MDI port ordering (MDI swap) for easy PCB layout
  • Crossover Detection & Auto-Correction
  • Supports power down/link down power saving/PHY disable mode
  • Wake-On-LAN and ‘RealWoW!’ Technology (remote wake-up) support
  • Supports Microsoft WPI (Wake Packet Indication)
  • Supports PCIe L1 substate L1.1and L1.2

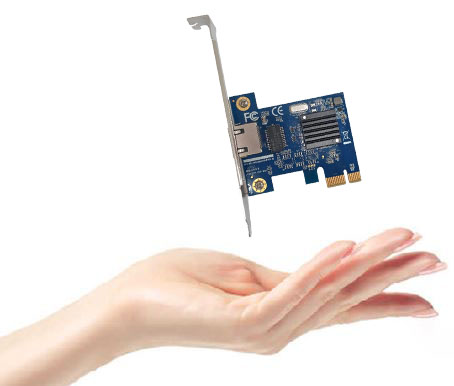

Small size, easy to install

PCIe x1 interface
Suitable for common platforms such as ATX/micro-ATX


















Good compatibility

EX-8101P is compatible with common operating systems, including 32/64-bit systems of Windows 7, 8, 8.1, 10, Windows Server 2008 R2, 2012,  systems, Linux systems, UEFI , DOS and provides corresponding drivers.

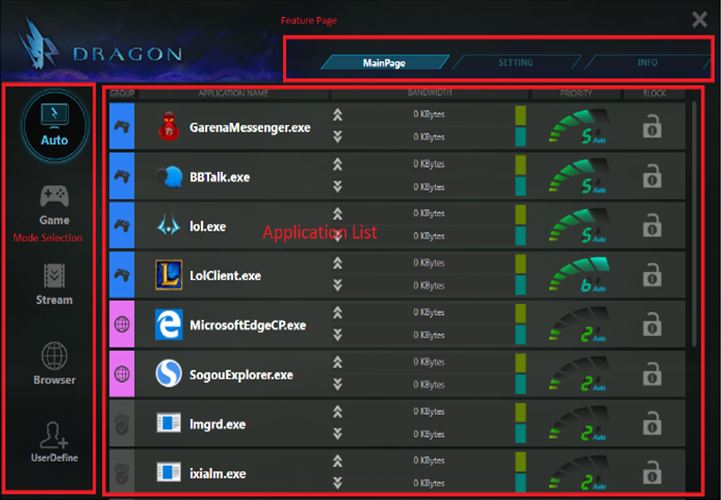

Realtek Dragon Software

Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Optimized Default Setting for Game, Browser, and Streaming Modes
The dragon tool has several modes to choose from, auto (default), game mode, streaming video mode, internet browsing mode, and custom mode
 E.g game mode : the process belong to game such as Legend, warcaft3 Diablo3 etc...will get the hightest bandwidth priority , the other process will get the lowest bandwidth priority.
auto mode -dragon auto adjust priority: Dragon can detect foreground application, and set this application priority to highest priority,to make sure this appliction can get the best network bandwidth in this computer.

At the same time,Dragon also set others application in this application group to high priority, and other group application will be set to lowest, to make sure this group can get the better bandwidth than other group.






HARDWARE
Controller
RTL8125
Memory
2Mbit
Interface
1x100/1000/2500Mbps Ports
LED Indicator
Link ,ACT & Speed
Power
PCIE, 3.3V
Power Saving
IEEE-802.3az-2010
Install
PC
Housing
PCIe card , w/o heatsink
Dimension
86.95x54.49.1.6mm
SOFTWARE
OS Support
Win7/8/8.1/10
​Server2008R2/2012
UEFI/DOS/Linux/Novell
Additional Support
Dragon Utility
