Gaming

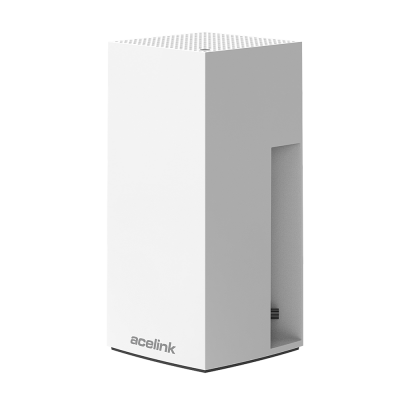

RE-6679RPX

WiFi 6 AX5400 Reapeater/Converter

  • 5 x1GbE Ports
  • 2+4 Streams Of Wi-Fi 6
  • Supports 160MHz Bandwidth
  • Supports OFDMA and MU-MIMO
  • Extends Home WiFi 6 Coverage
WiFi 6
AX5400
Dual Band

Make Wireless to WiFi 6 Super High Speed

This router upgrades your network to Wi-Fi 6, which operates in both 5GHz and 2.4GHz band. Wi-Fi 6, the 802.11ax, is the mostly compliant Wi-Fi standard for current home wireless networking. With combined  up to 4800Mbps 5GHz data rate and 573Mbps 2.4GHz data rate, the device provides the best speeds and coverage. You can run multiple bandwidth-intensive applications in a large home or office. The router is also backward compatible with 802.11 a/b/g/n/ac to ensure compatibility with legacy Wi-Fi devices.


Carry More Data with 1024QAM

Comes with a maximum throughput per band of1024QAM modulation, meaning that the wireless signal can carry a drastic increase in data. Translate that to a 25% faster speed than the previous generation.


Secure Software WPS Setup

For you to easily connect your router and client network devices, simply use the software WPS function.


Dedicated Easy Web Configuration

A browser is all you need to configure this device, the friendly web user interface will take you step by step and have the setup completed with ease.


WPA3 for the Latest in Wi-Fi Encryption

The latest version of the Wi-Fi Protected Access (WPA) protocol that encrypts user data and protects wireless networks from outside threats. WPA3 includes a new protocol to verify authentication and secure your devices’ connections while further protecting your wireless network from attacks.

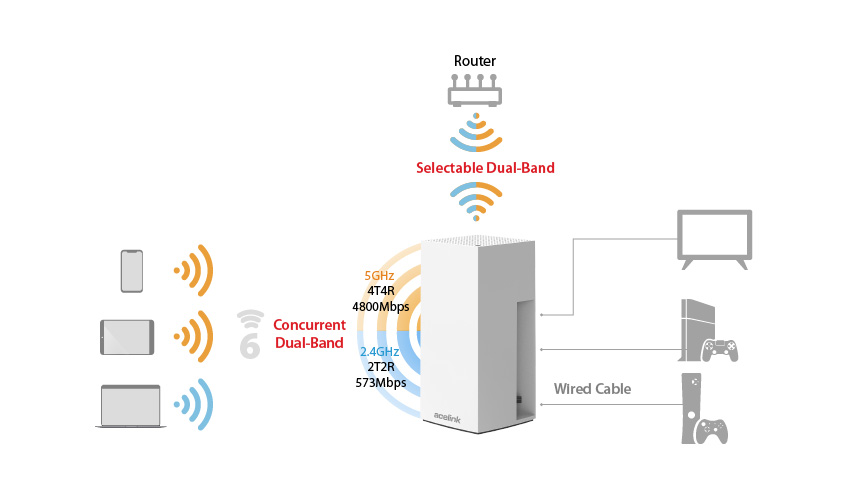

Extends Home WiFi 6 Coverage

With 6 simultaneous streams, a WiFi 6 powered dual band network boosts overall speeds up to a stunning 5400 Mbps, ideal to meet the data needs of all your devices.

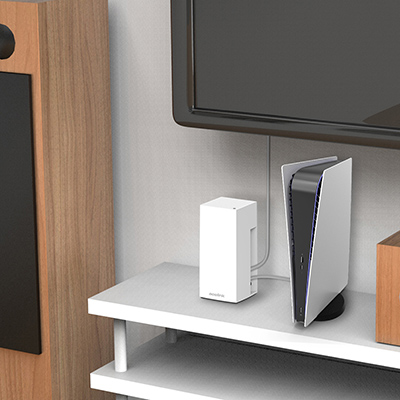

Wired Connection of Multiple Devices

Up to 4 Gigabit Ethernet Port – Provides faster-wired connections to smart TVs, computers, video gaming consoles and more.



AX5400 Dual Band Concurrent Repeater
Chipset
Qualcomm IPQ5018 + QCN6024 + QCA8337
Flash + SDRAM
256MB NAND Flash + 512MB DDR3L
Ethernet Port
10/100/1000/2500M UTP Port x 1 (Auto MDI/MDI-X)
10/100/1000M UTP Port x 4 (Auto MDI/MDI-X)
Frequency Band
2412~2472 MHz (Industrial Scientific Medical Band)
5150~5925 MHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps;
11b: 1/2/5.5/11Mbps; 11g: 6/9/12/24/36/48/54Mbps
11n (40MHz): MCS0-7, up to 400Mbps
11ac (80MHz): MCS0-9, up to 2400Mbps
11ax (40MHz): MCS11, up to 573Mbps
11ax (160MHz): MCS11, up to 4900Mbps
Output Power
2.4GHz:   11b(11M): 22±1.5dBm, 11g(54M): 21±1.5dBm
 11n(20MHz, MCS7): 20±1.5dBm
 11n(40MHz, MCS9): 18±1.5dBm
 11ax(HE40MHz, MCS11): 17±1.5dBm
5GHz:
 11a(54M): 20±1.5 dBm,
 11n(20MHz, MCS7): 20±1.5 dBm,
 11n(40MHz, MCS7): 18±1.5dBm,
 11ax(HE160MHz, MCS11): 16±1.5dBm
Receiver Sensitivity
2.4GHz:
 11b(11M): -84±2dBm, 11g(54M): -71±2dBm
 11n(20MHz, MCS7): -70±2dBm
 11n(40MHz, MCS9): -62±2dBm
 11ax(HE40MHz, MCS11): -56±2dBm
5GHz:
 11a(54M): -72±2dBm,
 11n(20MHz, MCS7): -70±2dBm,
 11n(40MHz, MCS7): -68±2dBm,
 11ac(160MHz, MCS9): -55±2dBm
 11ax(HE160MHz, MCS11): -52±2dBm
Antenna
Internal Antenna x 6
Power Module
DC 12V, 2A
Dimension
Plastic housing 114(W) x 241(H) x 114(D) mm
Temperature
Operating: 32~104°F (0~40°C), Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
