Home WiFi

BR-6893GAX

WiFi 6E AX6600 Tri-band 2-in-1 Gaming Router and Access Point

  • Solution: IPQ6010+5022+5052+9024+8075+8081
  • 2+2+4(6E) Wi-Fi 6E Tri Band, 6GHz (4900Mbps) 5GHz (1201Mbps), 2.4GHz (573Mbps)
  • Supports WiFi 6E With160MHz Bandwidth
  • Supports Tradition QoS
  • Supporst Smart QoS (3rd party)
  • Supports LED RBG Control
  • 4x4 at 6GHz, 2x2 at 5GHz and 2x2 at 2.4GHz with Beamforming
  • OFDMA and MU-MIMO
  • Different operation mode: Router and AP Mode
  • WPA2-PSK(AES)
  • Wi-Fi Protected Setup (WPS 2.0) hardware button
  • Easy web-based configuration
WiFi 6
AX6600
Tri-band
Router
Access Point
External Antennas
Inquiry

​


Stay Ahead with Wi-Fi 6E

Upgrade your network to WiFi 6E to stay ahead of the game. Expect 4900Mbps 6GHz, 1201Mbps 5GHz and 573Mbps 2.4GHz data rate, meaning that you can experience fast speed and wide coverage that the latest tech can offer. You will be able to run multiple bandwidth-intensive applications in a large home or office and on multiple devices at the same time without breaking a sweat. Don’t worry, the BR-6893GAX is also backward compatible with 802.11 a/b/g/n/ac.


6x Large External Antennas

The antenna size speaks for itself. With 6 large antennas that amplifies the signal quality and coverage.


Carry More Data with 1024QAM

Comes with a maximum throughput per band of1024QAM modulation, meaning that the wireless signal can carry a drastic increase in data. Translate that to a 25% faster speed than the previous generation.


Seure Software WPS Setup

For you to easily connect your router and client network devices, simply use the software WPS function.


Dedicated Easy Web Configuration

A browser is all you need to configure this device, the friendly web user interface will take you step by step and have the setup completed with ease.
​

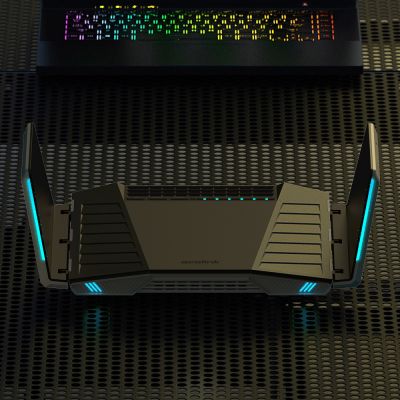

Aggressive Styling and Multiple Boosting Features

The aggressive styling is not just for show, it not only helps with cooling but it is able to house multiple functions like LED Control and reflects speedy features like WTFast.
AX6600 WiFi 6E Tri Band Gaming Router
Chipset
IPQ6010 + QCN5022 + QCN5052 + QCN9024 + QCA8075 + QCA8081
Flash + SDRAM
256MB NAND Flash + 512MB DDR4
Ethernet Port
10/100/1000/2500M UTP Port x 1 (Auto MDI/MDI-X)
10/100/1000M UTP Port x 4 (Auto MDI/MDI-X)
Frequency Band
2412~2472 MHz (Industrial Scientific Medical Band)
5150~5959 MHz (subject to local regulations)
6115~7125 MHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (40MHz): MCS0-7, up to 300Mbps at 2T2R
11ac (80MHz): MCS0-9, up to 866Mbps at 2T2R
11ax (40MHz): MCS11, up to 573Mbps at 2T2R
11ax (80MHz): MCS11, up to 1200Mbps at 2T2R
11ax (160MHz): MCS11, up to 4900Mbps at 4T4R
Antenna
External Dual Band Antenna x 2
External 6G Band Antenna x 4
Power Adapter
DC 12V, 3A
Power Adapter
Plastic housing 350(W) x 147(H) x 190(D) mm
Temperature
Operating: 32~104°F (0~40°C), Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
RF Specification
Output Power
2.4GHz:
    11b(11M): 26±1.5dBm
    11g(54M): 24±1.5dBm
    11n(20MHz, MCS7): 24±1.5dBm
    11n(40MHz, MCS7): 24±1.5dBm
    11ax(HE40MHz, MCS11): 21±1.5dBm
5GHz:
    11a(54M): 21±1.5 dBm,
    11n(20MHz, MCS7): 21±1.5 dBm,
    11n(40MHz, MCS7): 21±1.5dBm,
    11ac(80MHz, MCS9): 20±1.5dBm
    11ax(HE80MHz, MCS11): 18.5±1.5dBm
6GHz:
    11a(54M): 20±1.5 dBm,
    11n(20MHz, MCS7): 19±1.5 dBm,
    11n(40MHz, MCS7): 19±1.5dBm,
    11ac(80MHz, MCS9): 18±1.5dBm
    11ax(HE80MHz, MCS11): 17±1.5dBm
    11ac(160MHz, MCS9): 18±1.5dBm
    11ax(HE160MHz, MCS11): 17±1.5dBm
Receiver Sensitivity
2.4GHz:
    11b(11M): -79±2dBm
    11g(54M): -67±2dBm
    11n(20MHz, MCS7): -67±2dBm
    11n(40MHz, MCS7): -65±2dBm
    11ax(HE40MHz, MCS11): -53±2dBm
5GHz:
    11a(54M): -72±2dBm,
    11n(20MHz, MCS7): -70±2dBm,
    11n(40MHz, MCS7): -67±2dBm,
    11ac(80MHz, MCS9): -54±2dBm
    11ax(HE80MHz, MCS11): -51±2dBm
6GHz:
    11a(54M): -70±2dBm,
    11n(20MHz, MCS7): -68±2dBm,
    11n(40MHz, MCS7): -65±2dBm,
    11ac(80MHz, MCS9): -56±2dBm
    11ax(HE80MHz, MCS11): -51±2dBm
    11ac(160MHz, MCS9): -54±2dBm
    11ax(HE160MHz, MCS11): -48±2dBm

* Housing is only for reference
​* Specifications may be changed without prior notice
