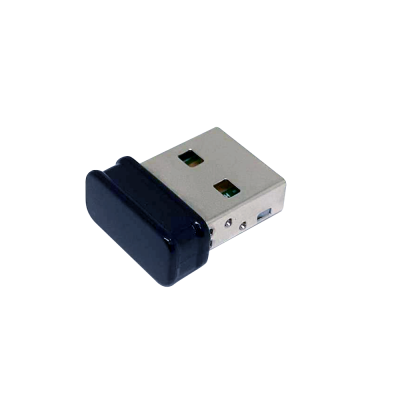

EW-7811UNC

11ac 1T1R Wireless LAN USB Adapter

  • Comply with IEEE 802.11a/b/g/n/ac standards.
  • Supports dual band frequency- 2.4GHz / 5GHz
  • Very high transfer data rate – up to 150Mbps (2.4GHz) or up to 433Mbps (5GHz).
  • Supports WMM wireless QoS feature.
  • Supports Wave-2 compliant MU-MIMO.
  • Supports 64/128-bit WEP, WPA, WPA2 for wireless encryption.
  • Support the most popular operating system: Windows 7/8/10, MAC OS, Linux. *Supports software WPS (WiFi Protected Setup) connection.
  • Portable and super nano size design.
Inquiry


Up to 11n 150Mbps or 11ac 433Mbps IEEE 802.11a/b/g/n/ac, 1T1R, Super Nano Size
Product   EW-7811UNC
Main Chipset
Realtek RTL8811CU
Bus Type
USB 2.0 Type A
Frequency Band
2.4000~2.4835GHz
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps;
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 72Mbps
11n (40MHz): MCS0-07, up to 150Mbps
11ac (80MHz): VHTMCS0-9, up to 433Mbps
Output Power
2.4GHz:
11b(11M): 16±1.5dBm
11g(54M): 13.5±1.5dBm
11n(20MHz, MCS7): 14±1.5dBm
11n(40MHz, MCS7): 12±1.5dBm
5GHz:
11a(54M): 10±1.5 dBm
11n(20MHz, MCS7): 10±1.5 dBm
11n(40MHz, MCS7): 10±1.5dBm
11ac(80MHz, VHTMCS9): 8.5±1.5dBm
Receive Sensitivity
2.4GHz:
11b(11M): -86±2dBm
11g(54M): -70±2dBm
11n(20MHz, MCS7): -68±2dBm
11n(40MHz, MCS7): -65±2dBm
5GHz:
11a(54M): -67±2dBm
11n(20MHz, MCS7): -65±2dBm
11n(40MHz,MCS7): -62±2dBm
11ac(80MHz,VHTMCS9): -52±2dBm
Antenna
Internal Antennas x 1 (1T1R)
Drivers
Windows 7/8/10, Linux, MAC OS
LED
Link/Act/WPS
Dimension
7.1(H) x 14.9(W) x 17.5(D) mm
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 0~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
TBD
