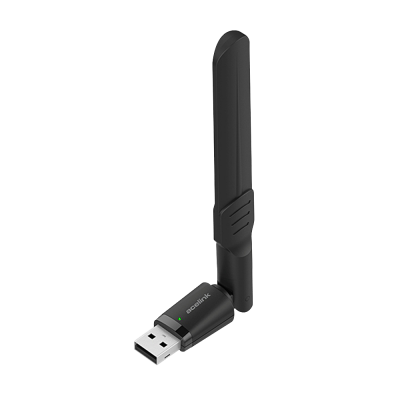

EW-7822UAC V2.0A

11ac 2T2R Wireless LAN USB Adapter

  • Comply with IEEE 802.11a/b/g/n/ac standards.
  • Supports dual band frequency- 2.4GHz / 5GHz
  • Very high transfer data rate  – up to 300Mbps (2.4GHz) or up to 867Mbps (5GHz).
  • Supports WMM wireless QoS feature.
  • Supports Wave-2 compliant MU-MIMO
  • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security.
  • Supports WPS (WiFi Protected Setup)  hardware button for easy connection.


Up to 300Mbps in 2.4GHz and 867Mbps in 5GHz
IEEE 802.11a/b/g/n/ac, 2T2R
Product EW-7822UAC V2.0A
Main Chipset
Realtek RTL8812BU
Bus Type
USB 3.0 Type A
Frequency Band
2.4000~2.4835GHz , 5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 144Mbps
11n (40MHz): MCS0-07, up to 300Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps
Output Power
2.4GHz:
11b(11M): 11±1.5 dBm
11g(54M): 9±1.5 dBm
11n(20MHz, MCS7): 8±1.5 dBm
11n(40MHz, MCS7): 8±1.5 dBm
5GHz:
11a(54M): 8±1.5 dBm
11n(20MHz, MCS7): 7±1.5 dBm
11n(40MHz, MCS7): 7±1.5 dBm
11ac(80MHz, VHTMCS9): 5±1.5 dBm
Receive Sensitivity
2.4GHz:
11b(11M): -80±2dBm
11g(54M): -68±2dBm
11n(20MHz, MCS7): -66±2dBm
11n(40MHz, MCS7): -65±2dBm
5GHz:
11a(54M): -68±2dBm
11n(20MHz, MCS7): -65±2dBm
11n(40MHz, MCS7): -62±2dBm
11ac(80MHz, VHTMCS9): -52±2dBm

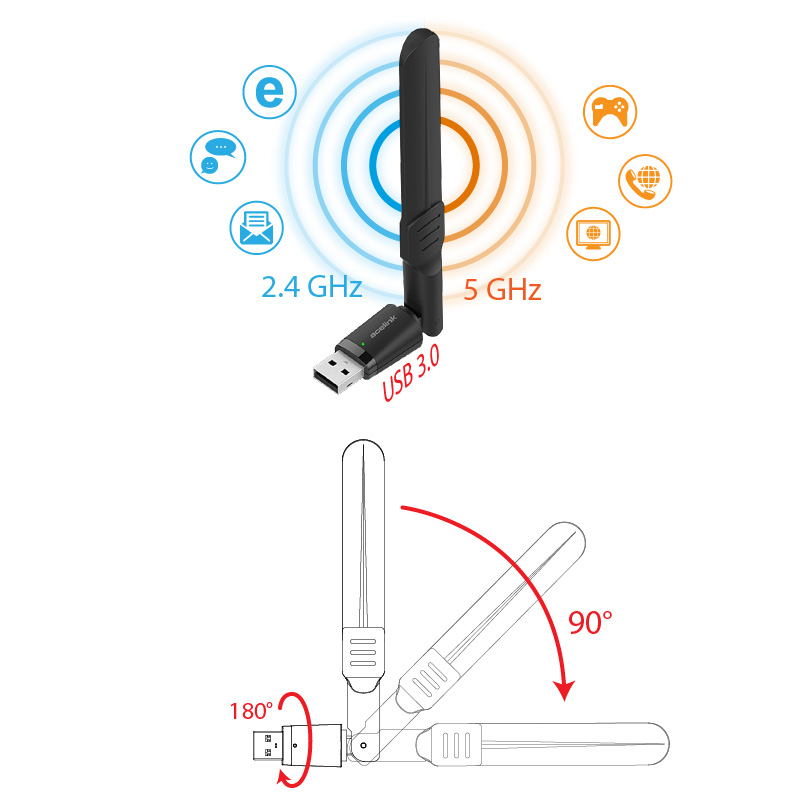

Antenna
External Antennas x 2 (2T2R)
Drivers
Windows 10, Linux, MAC OS
LED
Link/Act/WPS
Dimension
13.4(H) x 17.5(W) x 35.5(D) mm (Without External Antenna Case)
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 0~90% (NonCondensing),
Storage: Max. 95% (NonCondensing)
Certification
TBD
