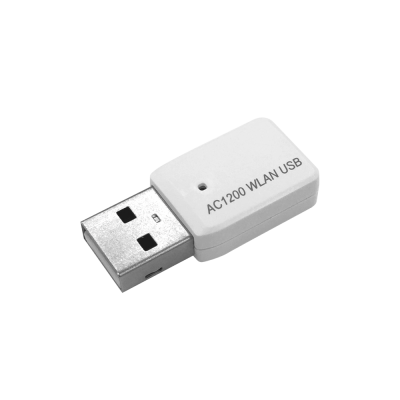

EW-7822UTC

11ac 2T2R Wireless LAN USB Adapter

  • Comply with IEEE 802.11a/b/g/n/ac standards.
  • Supports dual band frequency- 2.4GHz / 5GHz
  • Very high transfer data rate – up to 300Mbps (2.4GHz) or up to 867Mbps (5GHz).
  • Supports WMM wireless QoS feature.
  • Supports Wave-2 compliant MU-MIMO
  • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security.
  • Support the most popular operating system: Windows 7/8/10, Linux, MAC OS.
  • Supports WPS (WiFi Protected Setup) hardware button for easy connection
Inquiry



Up to 300Mbps in 2.4GHz and 867Mbps in 5GHz IEEE 802.11a/b/g/n/ac, 2T2R , Super Tiny Size
Product EW-7822UTC
Main Chipset
Realtek RTL8812BU
Bus Type
USB 3.0 Type A
Frequency Band
2.4000~2.4835GHz(Industrial Scientific Medical Band)
5.150~5.825GHz(subject to local regulations)
Data Rate
11a:6/9/12/24/36/48/54Mbps
11b:1/2/5.5/11Mbps
11g:6/9/12/24/36/48/54Mbps
11n(20MHz):MCS0-7, up to 144Mbps
11n(40MHz):MCS0-7, up to 300Mbps
11ac(80MHz):VHTMCS0-9, up to 867Mbps
Output Power
2.4GHz:
11b(11M): 11±1.5dBm
11g(54M): 9±1.5dBm
11n(20MHz, MCS7): 8±1.5dBm
11n(40MHz, MCS7): 8±1.5dBm
5GHz:
11a(54M): 8±1.5 dBm
11n(20MHz, MCS7): 7±1.5 dBm
11n(40MHz, MCS7): 7±1.5dBm
Receive Sensitivity
2.4GHz:
11b(11M): -80±2dBm
11g(54M): -68±2dBm
11n(20MHz, MCS7): -66±2dBm
11n(40MHz, MCS7): -65±2dBm
5GHz:
11a(54M): -68±2dBm,
11n(20MHz, MCS7): -65±2dBm
11n(40MHz,MCS7): -62±2dBm
11ac(80MHz,VHTMCS9): -52±2dBm
Antenna
Internal Pifa Antenna x 2(2T2R)
Drivers
Windows 7/8/10, Linux/Mac OS
LED
Link/Act/WPS
Dimension
8(H)x16(Wx35.5(D)mm)
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
FCC, CE
