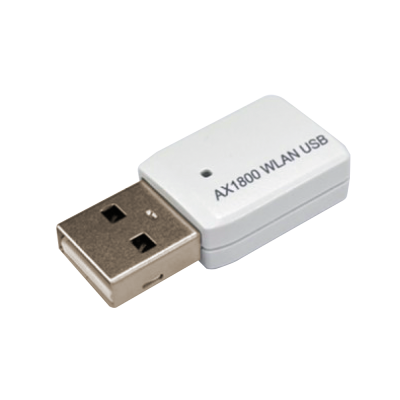

EW-7822UTX

11ax 2T2R Wireless LAN USB Adapter

  • Comply with IEEE 802.11a/b/g/n/ac/ax standards.
  • Supports dual band frequency- 2.4GHz / 5GHz
  • Very high transfer data rate – up to 574Mbps (2.4GHz) or up to 1200Mbps (5GHz).
  • Supports WMM wireless QoS feature.
  • Supports Wave-2 compliant MU-MIMO.
  • Supports 64/128-bit WEP, WPA, WPA2 and WPA3 for wireless encryption.
  • Support the most popular operating system: Windows 10, MAC OS, Linux.
  • Supports software WPS (WiFi Protected Setup) connection.
  • Portable and Tiny size design.
WiFi 6
Inquiry

​
Up to 2.4GHz 573Mbps or 5GHz 1201Mbps
2T2R IEEE 802.11a/b/g/n/ac/ax, MU-MIMO, OFDMA
EW-7822UTX V1.0A
Main Chipset
Realtek RTL8832AU
Bus Type
USB 3.0 Type A
Frequency Band
2.4000~2.4835GHz , 5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 144Mbps
11n (40MHz): MCS0-07, up to 300Mbps
11ax (40MHz): MCS0-11, up to 573Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps
11ax (80MHz): VHTMCS0-11, up to 1201Mbps
Output Power
2.4GHz:
  11b(11M): 19±1.5 dBm
  11g(54M): 16±1.5 dBm
  11n(20MHz, MCS8): 15±1.5 dBm
  11n(40MHz, MCS9): 15±1.5 dBm
  11ax(20/40MHz, MCS11): 14±1.5 dBm
5GHz:
  11a(54M): 16±1.5 dBm
  11n(20/40MHz, MCS11): 14±1.5 dBm
  11ac(80MHz, MCS9): 15±1.5 dBm
  11ax(80MHz, MCS11): 14±1.5 dBm
Receive Sensitivity
2.4GHz:
  11b(11M): -86±2dBm
  11g(54M): -73±2dBm
  11n(20MHz, MCS8): -67±2dBm
  11n(40MHz, MCS9): -61±2dBm
  11ax(20MHz, MCS11): -61±2dBm
  11ax(40MHz, MCS11): -58±2dBm
5GHz:
  11a(54M): -72±2dBm
  11n(20MHz, MCS11): -60±2dBm
  11n(40MHz, MCS11): -57±2dBm
  11ac(80MHz, MCS9): -58±2dBm
  11ax(80MHz, MCS11): -56±2dBm
Antenna
Internal PiFa Antennas x 2 (2T2R)
Drivers
Windows 7/10, Linux, MAC OS
LED
Link/Act/WPS
Dimension
8(H) x 16(W) x 34(D) mm
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 0~90% (NonCondensing), Storage: Max. 95% (NonCondensing)
