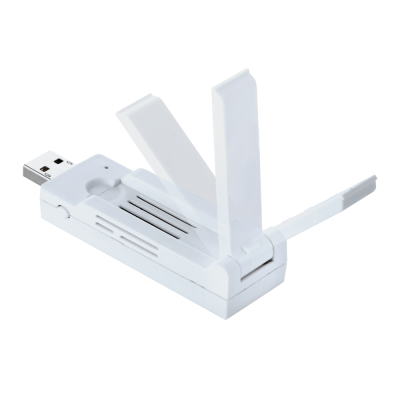

EW-7833UAC

IEEE802.11a/b/g/n/ac 3T3R High Performance USB Dongle

  • Comply with IEEE 802.11a/b/g/n standards and IEEE802.11ac draft
  • Supports dual band frequency - 2.4GHz / 5GHz
  • Very high transfer data rate - up to 450Mbps (2.4GHz) or up to 1.3Gbps (5GHz).
  • Supports WMM wireless QoS feature.
  • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security.
  • Support the most popular operating system: Windows 7, Windows 8 / 8.1, Linux, MAC OS (After 10.5)
  • Supports WPS (WiFi Protected Setup) hardware button for easy connection.
Inquiry

11ac Wireless Dual-Band USB3.0 Adapter
Dual Band, up to 11n 450Mbps or 11ac 1.3Gbps
Product   EW-7833UAC
Main Chipset
Realtek RTL8814AU
Bus Type
USB 3.0 Type A
Frequency Band
2.4000~2.4835GHz  (subject to local regulations)
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 223Mbps
11n (40MHz): MCS0-15, up to 450Mbps
11ac (80MHz): VHTMCS0-9, up to 1.3Gbps
Output Power
2.4GHz:
11b(11M): 17±1.5 dBm
11g(54M): 15±1.5 dBm
11n(20MHz, MCS7): 13±1.5 dBm
11n(40MHz, MCS7): 13±1.5 dBm
5GHz:
11a(54M): 13±1.5 dBm
11n(20MHz, MCS7): 12±1.5 dBm
11n(40MHz, MCS7): 12±1.5 dBm
11ac(80MHz, VHTMCS9): 10±1.5 dBm
Receive Sensitivity
2.4GHz:
11b(11M): -79±2dBm
11g(54M): -65±2dBm
11n(20MHz, MCS7): -64±2dBm
11n(40MHz, MCS7): -61±2dBm
5GHz:
11a(54M): -70±2dBm
11n(20MHz, MCS7): -67±2dBm
11n(40MHz, MCS7): -64±2dBm
11ac(80MHz, VHTMCS9): -51±2dBm
Antenna
2 internal PIFA antennas and 1 Dipole antenna (3T3R)
Drivers
Windows 7 / 8 / 8.1, Linux, MAC OS(After 10.5)
LED
Link/Act/WPS
Dimension
TBD
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 0~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
TBD
