EW-7479CAX

AX1800 PoE Access Point

  • 11AX 2T2R Concurrent Dual Band
  • Up to 1800Mbps WiFi 6 performance
  • 128MB Flash + 512MB DRAM
  • Qualcomm IPQ8070A+QCN5024+QCN5054
  • 37 OFDMA users
  • 1 Gigabit PoE Port
  • Built-in Radius Server
  • Ceiling Mount Design
WiFi 6
PoE
Inquiry

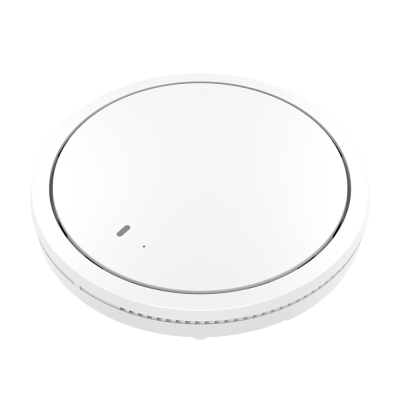

AX1800 Ceiling Mount PoE AP

The EW-7479CAX is a high performance ceiling mount AP with the latest 11ax WiFi 6 radios for enterprise users.  Featuring Qualcomm’s Quad-Core A53 CPU, the 11ax AP can deliver 1202Mbps at 5GHz and 574Mbps at 2.4GHz.  With one Gigabit PoE port and one Gigabit data port, it provides flexibility for installers


QCA Acron Solution

With the latest wireless 802.11ax technology, it shows improvements in the speed, reliability and quality of wireless communications.  Supporting 2x2 MU-MIMO OFDMA, the Qualcomm Acorn architecture provide 37 simultaneous OFDMA users.  It is suitable for high density deployment.


Built-in Radius Server

With built-in Radius Server, it is possible build an user access control system without the need for dedicated hotspot gateway.






















HARDWARE
CPU
Qualcomm IPQ8070A. Quadcore Arm A53 @ 1GHz
RF
Qualcomm QCN5024+QCM5054
Memory
128MB Flash + 512MB DRAM
FEM&PA
5G: SKY85750-11
2.4G: SKY85334-11
Interface
1 x RJ45 10/100/1000Mbps Ethernet Port (PoE in)
Button
Reset button
LED Indicator
Power LED, Diag LED
Antenna
Type: 2 x Built-In PIFA (2 dual-band antenna)
Gain: 2.2dBi (2.4GHz), 2.9dBi (5GHz) Max.
Power
DC: 12V / 1A
802.3af (PoE Injector Optional)
Power Consumption
12W (Full Loading)
Power Saving
802.3az

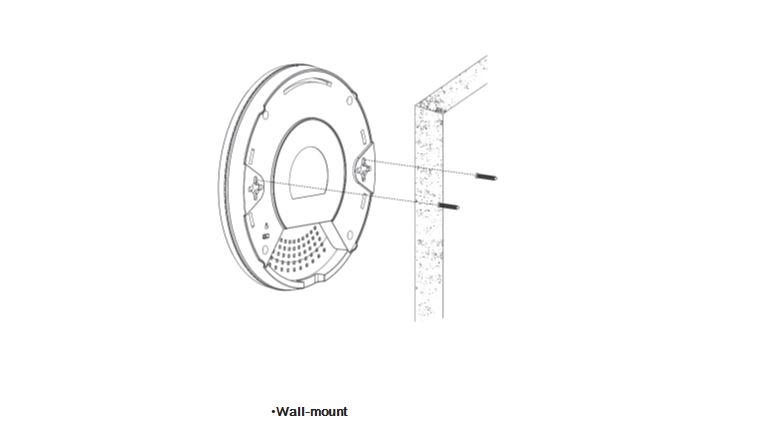

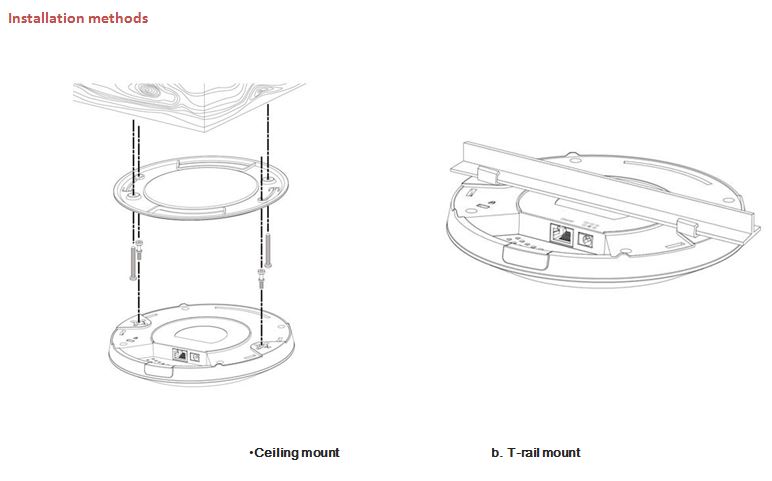

Mounting
Ceiling
Housing
UL94-5VB Flammability Rating
Dimension
176.29 (D) x 32.75 (H) mm
Weight
372g
WIRELESS
Standard
802.11 a/b/g/n/ac/ax Concurrent Dual-Band
Frequency Band
Radio Ⅰ: 802.11b/g/n/ax 2.412~2.484(GHz)
Radio Ⅱ: 802.11a/n/ac/ax 5.15~5.25(GHz), 5.25~5.35(GHz),
                 5.470~5.725(GHz)
(The supported frequency band is restricted by local regulations.)
Maximum Data Speed
2.4GHz: 574Mbps, 5GHz: 1201Mbps
Operation Channels
2.4GHz :
US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
5GHz : Country dependent for the following ranges:
US/Canada:
Band 1: 36, 40, 44, 48; 5.180~5.240(GHz)
Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
Europe:
Band 1: 36, 40, 44, 48; 5.180~5.240(GHz)
Maximum Transmit Power
802.11b
17dBm@1Mbps, 17dBm@11Mbps
802.11g
17dBm@6Mbps, 15dBm@54Mbps
802.11n (2.4G)
17dBm@MCS0(HT20), 15dBm@MCS7(HT20), 12dBm@MCS9(HT40)
802.11ax (2.4G)
9dBm@MCS11 (HT40), 15dBm@MCS4/12, 15dBm@MCS5/13
14dBm@MCS6/14, 14dBm@MCS7/15
802.11a
17dBm@6Mbps, 16dBm@54Mbps
802.11n(5G)
17dBm@MCS0 (HT20), 15dBm@MCS7 (HT20)
802.11ac
17dBm@MCS0 (VHT80), 15dBm@MCS7 (VHT80), 14dBm@MCS9 (VHT80)
802.11ax (5G)
10dBm@MCS11 (HT80)
(CE: 20dBm or lower, FCC: 23dBm or lower)
Receiver Sensitivity
802.11b : ≤-88dBm@1Mbps , ≤-86dBm@11Mbps
802.11g : ≤-88dBm@6Mbps ,  ≤-71dBm@54Mbps
802.11gn (2.4G) : ≤-88dBm@MCS0 ,  ≤-68dBm@MCS7m ,  ≤-60dBm@MCS9
802.11ax (2.4G) :  ≤-53dBm@MCS11
802.11a: ≤-87dBm@6Mbp , ≤-68dBm@54Mbps
802.11n(5G) :  ≤-87dBm@MCS0 , ≤-68dBm@MCS7
802.11ac :  ≤ -56dBm@MCS9
802.11a (5G) : ≤ -50dBm@MCS11
Concurrent Clients
Up to 128 Per Radio
No. of SSIDs
16 (2.4GHz) + 16 (5GHz)
802.11 r/k Fast Roaming
Yes
Band Steering
Yes
AirTime Fariness
Yes
Beamforming
Yes
SOFTWARE
Wireless Mode
AP / WDS AP / WDS Bridge
802.1q VLAN
Y (VID = 1-4095)
Spanning Tree
RSTP
QoS
WMM (802.11e)
Max associated station number
Pass-Through
IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p)
Yes
Multicast Rate up to 54Mbps
Yes
SECURITY
Encryption
WEP / WPA2-AES / WPA3
Wireless L2 Isolation
Yes
Station Isolation
Yes
IEEE 802.1x Authenticator
Yes
EAP Authentication
PEAP
Hidden SSID
Yes
MAC Address Filter
Yes
Wireless STA
Yes
Rogue AP Detection (w/ NMS)
Yes
MANAGEMENT
Deployment
Standalone (AP mode)
Master AP mode: Can manage 16 Edimax CAX1800 APs with NMS
Managed AP mode: Be managed by Edimax CAX1800 Master AP with NMS
Configuration
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
RADIUS Server
Built-In
Auto-Channel
Yes
Private MIB
Yes
OTHERS
Certification
CE, FCC
Environmental Condition
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 90% or Less
