WiFi-6E PoE AP

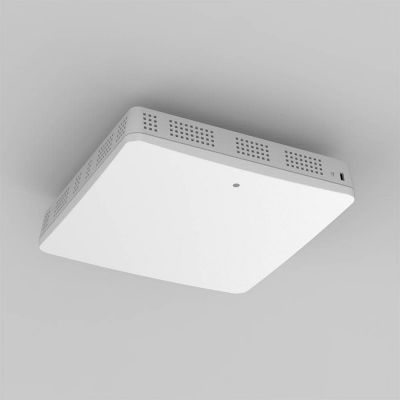

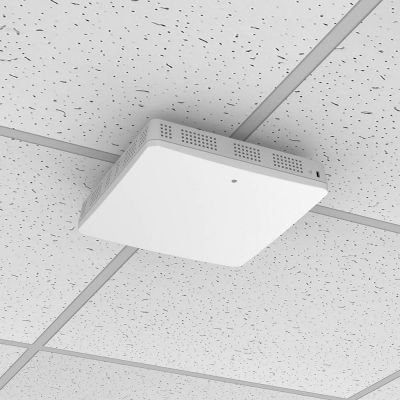

The EW-7689WTX is the Tri-Band PoE Access Point for enterprise, school and hospitality applications. Featuring the Qualcomm IPQ5018 Maple chipset, it is capable to deliver 5400Mbps of throughput in 2.4GHz, 5GHz, and 6GHz spectrum. WiFi-6E allows operations of 160MHz channel width more efficiently and is less susceptible to interference. Equipped with 802.3at PoE port, it can be installed in both wall mount and ceiling mount configurations.

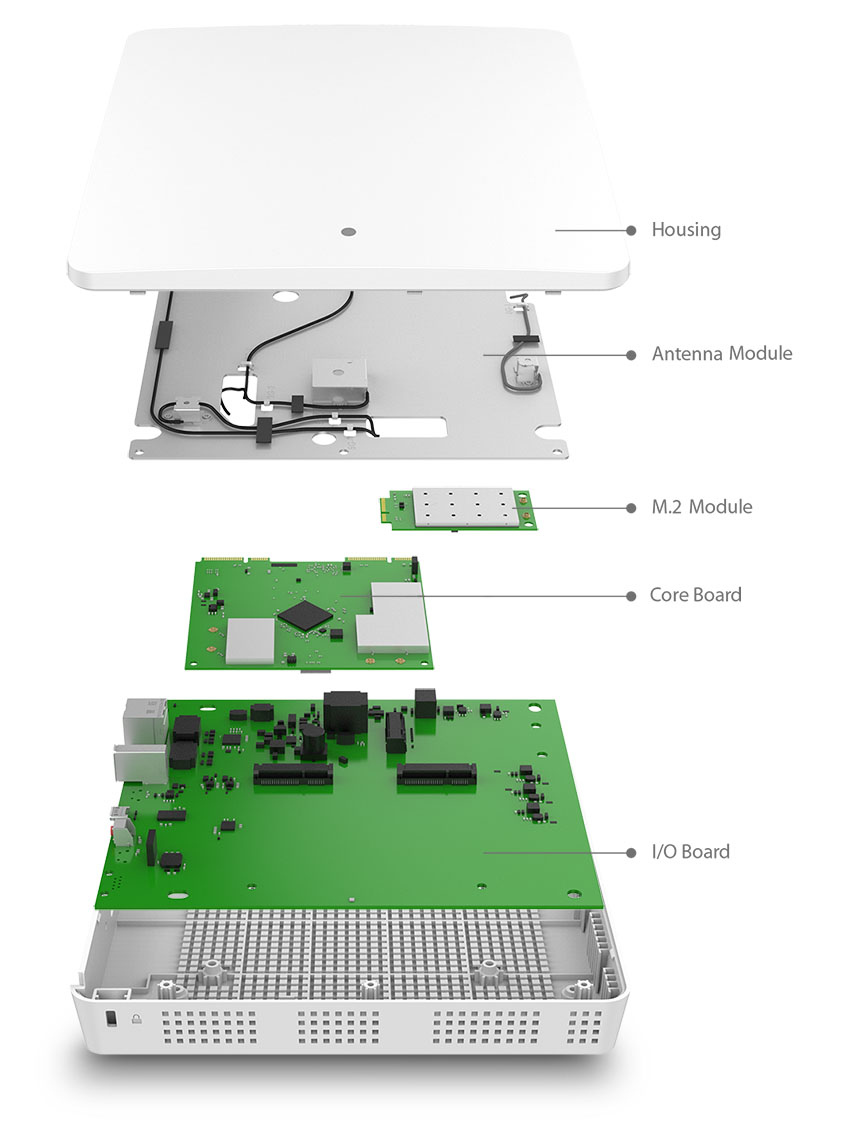

Modular Design

The EW-7689WTX is a family of QCA based Maple indoor/outdoor AP solutions. By leveraging the common coreboard, it is possible to save the certification cost.


Large Memory Size

The EW-7689WTX features 512MB of NAND Flash and 1GB of DDR3 RAM.  It is twice as large as APs in its class.  This allows more firmware features to be available for development.  It offers the utmost flexibility as a software development platform.


USB and Console Port

The AP has a USB port for storage when there is a need to upgrade firmware via USB port.  In addition, a Micro USB console port is included for diagnostic and recovery functions.


Full Feature Enterprise Software

The EW-7689WTX is customized with complete enterprise firmware. Starting from wireless functions such as OFDMA, target wake time, roaming, auto power, airtime fairness, multiple SSID&VLAN; to authentication based functions such as radius server, captive portal, social media login, client isolation, rogue AP detection. In addition, diagnostic functions such as site survey, packet capture and Syslog are also available. The full fledged firmware features cover all enterprise applications.
