WiFi-6 Dual Band AP

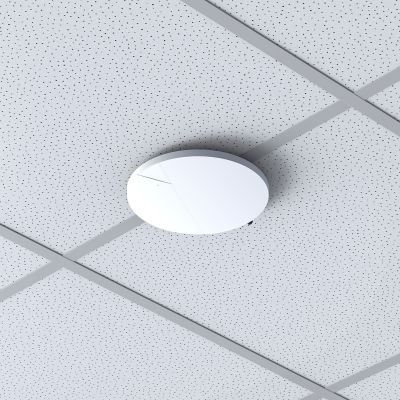

The EW-7886CAX is the 11AX Access Point for office, hotel, school, and shopping mall.  Featuring Mediatek Panther chipset, it is able to deliver 6000Mbps of throughput in both 2.4GHz and 5GHz spectrum.  Equipped with 2.5 Gigabit 802.3 at PoE port, it ensures fast and reliable transmission.


4T4R MU-MIMO

The EW-7886CAX has 4T4R MU-MIMO radios which is capable of operation with 160MHz channel Width.  That means it is capable of delivering 6000Mbps of throughput.


Powerful CPU and Crypto Engine

The EW-7886CAX features a Mediatek MT7986A CPU with quad core ARM A53 operating at 2.0GHz.  In addition, hardware crypto engine ensures a phenomenal VPN performance.


Large Memory Size

The EW-7886CAX features 256MB of NAND Flash and 512MB of DDR4 RAM.  This allows more firmware features to be available for development.  It offers utmost flexibility.


Full Features of Wi-Fi 6 for enterprises

The EW-7886CAX is featured with Wi-Fi 6 for enterprise scenarios, starting from wireless functions such as OFDMA, MU-MIMO, spatial re-use, target wake time…etc.

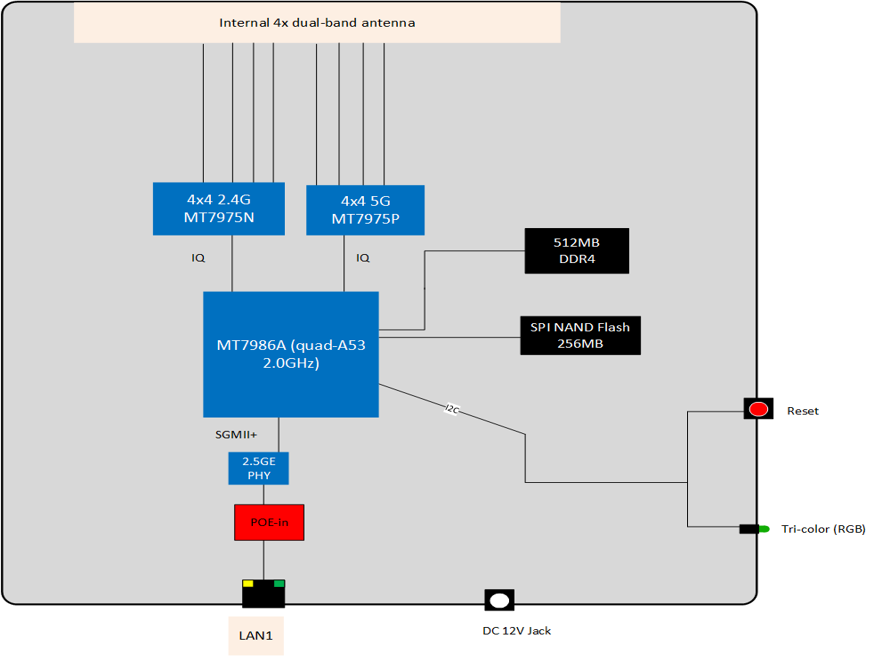

System Block Diagram

​
