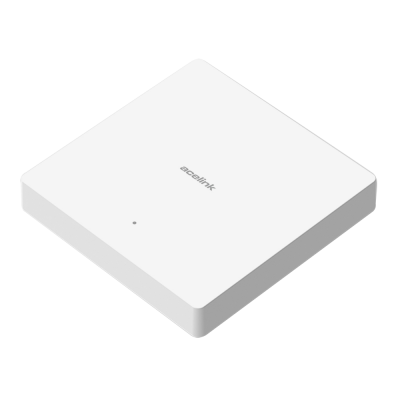

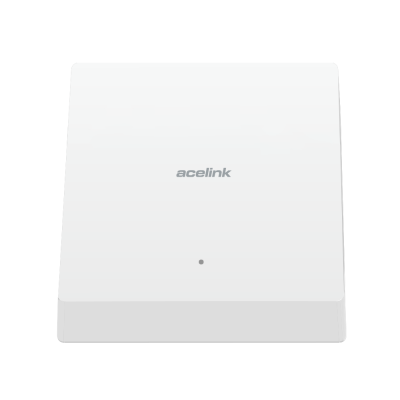

4T4R WiFi-6 Dual Band PoE AP

The EW-7889WAX is a powerful Dual Band PoE Access Point for enterprise, school and hospitality applications.  Featuring the Qualcomm IPQ8072A Maple chipset with Quadcore A53 CPU running at 2.2GHz, it is capable to deliver 3600Mbps of throughput in 2.4GHz and 5GHz spectrum. Equipped with 802.3bt PoE port, it can be install in both wall mount and ceiling mount configuration.


Modular Design

The EW-7889WAX is a family of QCA based Hawkeye indoor AP solutions.  By leveraging the common mainboard design, it is possible to save the certification cost.


Large Memory Size

The EW-7889WAX features 512MB of NAND Flash and 1GB of DDR4 RAM.  It is twice as large as APs in its class.  This allows more firmware features to be available for development.  It offers utmost flexibility as a software development platform.



USB and Console Port

The AP has an USB port for storage when there is a need to upgrade firmware via USB port.  In addition, a MicroUSB console port is included for diagnostic and recovery functions.


Full Feature Enterprise Software

The EW-7889WAX is customized with complete enterprise firmware.  Starting from wireless functions such as OFDMA, target wake time, roaming, auto power, airtime faireness, multiple SSID&VLAN; to authentication based function such as radius server, captive portal, social media login, client isolation, rogue AP detection.  In addition, diagnostic function such as site survey, packet capture and Syslog are also available.  The full fledged firmware features cover all enterprise applications.
