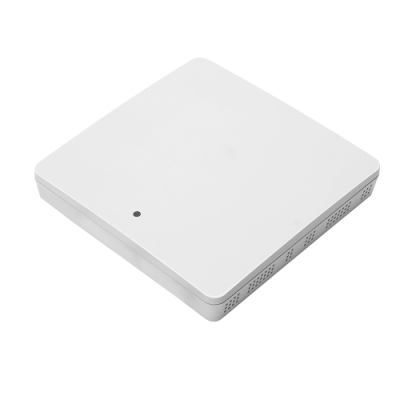

EW-7889WTX

AX7800 Tri-band PoE Access Point

  • Wi-Fi 6E support
  • WiFi 6 features: OFDMA/MU-MIMO/BSS coloring
  • 1 x 2.5GbE with 802.3at PoE port, 1 x GbE port
  • WiFi Protected Setup (WPS) hardware button
  • Wall-mount design
WiFi-6E
6GHz
2.5GbE
PoE
USB
Modular Design




WiFi 6/6E Tri-band Concurrent

The EW-7889WTX allows parallel processing for increased speed when handling heavy traffic from 2.4G/5G/6G bands, simultaneously. The new 6GHz band data rate can go up to 7,800Mbps, further offering wider channels, higher capacity, higher performance, lower latency, and less interference.


Extend Through Wall-mount

The easy-to-install wall-mount design makes it highly extendable to provide a wide coverage for your enterprise environment.


High-speed 2.5GbE WAN Port Support

Say goodbye to internet WiFi traffic bottlenecking, the High-speed 2.5GbE WAN port makes it a blazing fast winner.


Power Over Ethernet

Acelink EW-7889WTX supports one standard 802.3at Power Over Ethernet, so you don’t need to spend that extra time and cost on installations.

WPA3 & WPA2-AES authentication support

Provide a safe and secure WiFi environment for a large number of connected devices. The latest security feature makes sure you don’t need to worry further.

HARDWARE SPECIFICATIONS
CPU/ RF BB/MAC
CPU : IPQ5018 Dual-core Cortex A53 CPU 1GHz
Wireless Speed
802.11b/g/n/ax 2T2R : 2.4G 574Mbps (1024QAM)
802.11ac/a/n/ax 2T2R : 5G 2,400Mbps (1024QAM)
802.11ac/a/n/ax 2T2R : 6G 4,800Mbps (1024QAM)
Wireless Speed
802.11b/g/n/ax 2T2R : 2.4G 574Mbps (1024QAM)
802.11ac/a/n/ax 2T2R : 5G 2,400Mbps (1024QAM)
802.11ac/a/n/ax 2T2R : 6G 4,800Mbps (1024QAM)
PHY/Switch
2.5GE PHY: QCA8081
Memory
DDR3L 2x 512MB, total 1GB
Flash
NOR Flash 8MB+ 256MB NAND
Amplifiers
2.4GHz FEM:SKY85334-11x2
5GHz FEM: SKY85750-11x2
6GHz FEM: SKY85784-11x4
Physical Interface
-1x 10/100/1000/2500 Gigabit Ethernet with standard 802.3at PoE support
-1x 10/100/1000 Gigabit Ethernet
-1 x USB 2.0 type A
-1 x Console port
-1x 12V DC Jack
-1 x reset button
-1x WPS
-USB eject
Power Requirement
802.3at PoE
​DC :12V/3A​
Antenna
2x 2.4GHz Internal Antennas
2x 5GHz Internal Antennas
4x 6GHz internal antenna
RF Specification
Wireless Standard
IEEE 802.11 ac/a/b/g/n/ax, Wi-Fi 6 & Wi-Fi 6E comply
Operating Frequency
Radio Ⅰ: 802.11b/g/n/ax  2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac/ax  5.150~5.250(GHz), 5.250~5.350(GHz), 5.470~5.725(GHz), 5.725~5.850(GHz)
Radio Ⅲ: 802.11a/n/ac/ax 6.100~7.125(GHz)
ENVIRONMENT & PHYSICAL
Temperature Range
Operation : 0 to 40℃ (32℉ to 104℉)
​Storage : -20 to 60℃ (-4℉ to 140℉)
Humidity
90% or less – Operating, 90% or less - Storage
Certifications (TBD)
Comply with CE/FCC (TBD)
PCBA Dimensions
170mm x 150mm
Dimensions
183.3x183.3x 32mm
