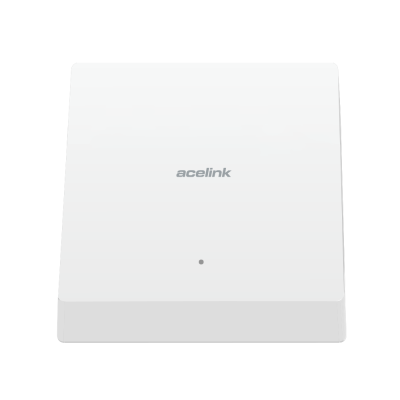

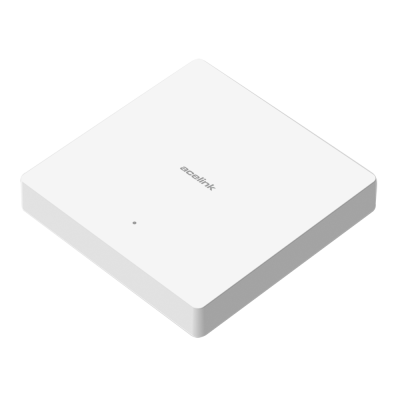

4T4R WiFi-6E PoE AP

The EW-7899WTX is a powerful Tri-Band PoE Access Point for enterprise, school and hospitality applications. Featuring the Qualcomm IPQ8072A Maple chip-set with Quadcore A53 CPU running at 2.2GHz, it is capable to deliver 8400Mbps of throughput in 2.4GHz 5GHz, and 6GHz spectrum. WiFi-6E allows operations of 160MHz channel width more efficiently and is less susceptible to interference. Equipped with 802.3bt PoE port, it can be installed in both wall mount and ceiling mount configurations.


Modular Design

The EW-7899WTX is a family of QCA based Hawkeye indoor AP solutions.  By leveraging the common mainboard design, it is possible to save the certification cost.


Large Memory Size

The EW-7899WTX features 512MB of NAND Flash and 1GB of DDR4 RAM. It is twice as large as APs in its class. This allows more firmware features to be available for development. It offers utmost flexibility as a software development platform.


USB and Console Port

The AP has a USB port for storage when there is a need to upgrade firmware via the USB port.  In addition, a MicroUSB console port is included for diagnostic and recovery functions.


Full Feature Enterprise Software

The EW-7899WTX is customized with complete enterprise firmware. Starting from wireless functions such as OFDMA, target wake time, roaming, auto power, airtime fairness, multiple SSID&VLAN; to authentication based functions such as radius server, captive portal and social media. login, client isolation, rogue AP detection. In addition, diagnostic functions such as site survey, packet capture and Syslog are also available. The full fledged firmware features cover all enterprise applications.
