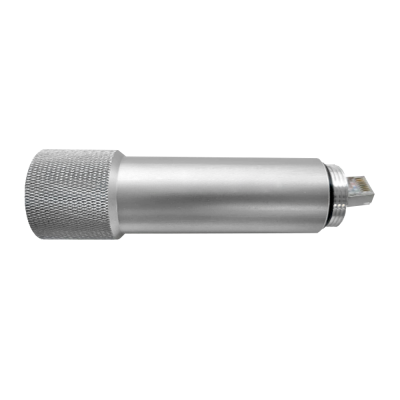

SGP-100

Outdoor Surge Protector

  • Outdoor ESD/Surge Protector
  • Support up to Gigabit Data Link
  • 802.3af/at PoE Support
  • IP-67 Weather Proof
  • 6KV, 3KA Surge Protection
  • 15KV air ESD Protection
  • 8KV Contact ESD Protection
Outdoor

ESD/Surge Protector for your Outdoor AP

An outdoor AP without proper ESD/Surge protection is a disaster waiting to happen.  The harsh weather condition will often damage the outdoor device ultimately.  The SGP-100 adds that protection to the PoE port of your outdoor AP.  Capable of withstanding up to 15KV of ESD(air) and 6KV of surge protection, it gives you a piece of mind over outdoor installation.


Simple Installation

The SGP-100 works with your existing Outdoor AP through 3 easy steps.  First, install the Ethernet connector to your AP.  Then connect your PoE cable to the protector.  Finally, secure the cable gland connector to finish the installation.
Specification
Housing
IP-67 Aluminium
Support Bitrate
10/100/1000MBps
Cable Type support
Cat5e, Cat 6
Input
RJ-45 PoE with cable gland
Output
RJ-45 with threads
Surge Protection
±6KV (1.2/50uS), 3KA (8/20uS)
ESD Protection
±15KV (air), ±8KV (contact)
PINS Protected
Data/PoE : 1/2, 3/6, 4/5, 7/8 all pins
Response Time
< 1ns
Operating Temperature
-20 ~ +75°C
Operating Humidity
0% ~ 95% non condensing
Certification
Safety : EN 60950-1, EN 60950-22
