SQ53 SOM

WiFi 7 IEEE 802.11be 2.4/5GHz 2x2 Dual Band Dual Concurrent SOM (System On Module)

  • Wi-Fi 7 802.11a/b/g/n/ac/ax/be 2.4/5GHz 2x2 dual-band dual concurrent applications
  • Qualcomm Miami IPQ5322 CPU, Quad-core A53 1.5GHz
  • Qualcomm Pebble QCN6412 5/6GHz RF SoC for 5GHz radio
  • Qorvo or Skyworks high power FEM
  • Acoustic high isolation filter for 5GHz
  • Supports 2.4GHz PHY rate of 688Mbps (40MHz)
  • Supports 5GHz PHY rate of 4,324Mbps (320-80 or 240MHz)
  • 8GB EMMC + 2GB DDR4 integrated, location reserved for NOR and NAND
  • 2 x 2.4GHz and 2 x 5GHz U.FL antenna connectors
  • 2 x USXGMII, 2 x PCIE3.0 1L or 1 x PCIE3.0 2L, 1 x USB2.0, UART, I2C, GPIO, etc.
  • Solder down stamp
  • Dimension:  75 (L) x 75 (W) x 3mm (H)
  • Acelink ELX Enterprise grade software stack or Qualcomm QSDK
WiFi 7
SOM
Inquiry

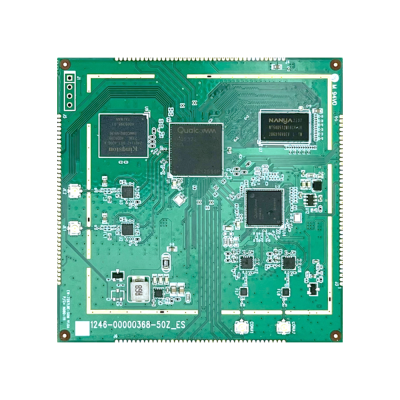

The SQ53 is a WiFi 7 dual-band dual concurrent SOM (System On Module), integrates the latest Qualcomm WiFi 7 IPQ5322 SoC providing up to 688Mbps (2.4GHz) and 4,324Mbps (5GHz) for wireless LAN applications.
​
Specifications
Module
WiFi 7 2.4GHz/5GHz 2x2 SOM
WLAN Standatd
IEEE 802.11 a/b/g/n/ac/ax/be
CPU
Qualcomm IPQ5322 CPU, Quad-core A53 1.5GHz
RF
2.4GHz: built-in IPQ5322
5/6GHz: Qualcomm QCN6412 RF SoC for 5GHz radio
FEM
2.4GHz: Qorvo QPF4259
5GHz: Qorvo QPF4559
Filter
2.4GHz: Walsin RFLPF1005040ACT
5GHz: Akoustic A10655 BAW filter with high rejection at 5/6GHz adjacent bands
Memory
8GB EMMC + 2GB DDR4(Max.2GB)
location reserved for NOR and NAND
Radio Mode
MIMO 2x2
Radio Frequency Band
2.4GHz: 2400-2485MHz
5GHz: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5825MHz
Transmit Power
2.4GHz: Max. 21dBm/MCS0
5GHz: Max. 21dBm/MCS0
Receive Sensitivity
2.4GHz: -95~-74dBm
5GHz: -94~-59dBm
Channel Size
2.4GHz: 20/40MHz
5GHz: 20/40/80/160/240(320-80)MHz
Modulation
DSSS: BPSK/QPSK/CCK
OFDM: BPSK, QPSK, CCK, 16/64/256/1024QAM
OFDMA: BPSK, QPSK, CCK, 16/64/256/1024/4096QAM
Data Rates
2.4GHz
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 300Mbps (40MHz)
802.11ax: up to 573.5Mbps (40MHz)
802.11be: up to 688Mbps (40MHz)
5GHz
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 300Mbps (40MHz)
802.11ac: up to 867Mbps (80MHz)
802.11ax: up to 2,402Mbps (160MHz)
802.11be: up to 4,324Mbps (320-80MHz)
Security
AES-CCMP, GCMP hardware processing
Power Consumption
TBD
Temperature
Operating Temperature: 0°C ~ +40°C (optional industrial grade)
Storage Temperature: -20°C  ~ +90°C
Humidify
Operating Humidify: 5%-95% (Non-condensing)
Dimension
75 (L) x 75 (W) x 3 (H) mm
Weight
TBD
Antenna
2 x 2.4GHz + 2 x 5GHz U.FL(ipex)
Interfaces
1 x USB2.0
2 x PCIE3.0 1L or 1 x PCIE3.0 2L
2 x USXGMII
UART
I2C
GPIO
Software
Qualcomm QSDK SFP v6.4 or above; or
​optional Acelink ELX Enterprise grade software stack
