Office/ENP WiFi

VPN3000

Home and Enterprise VPN Router

  • ​Dual core processor for smooth operations
  • 1G SFP combo WAN port
  • Protection is done through 15KV surge protection
  • Multiple ports, 2 WAN and 3 LAN
  • Dual WAN for load balance and fail over
  • IPsec, OpenVPN, PPTP VPN servers
  • SPI Firewall
VPN Router
WFH
Work From Home




Enterprise-Class VPN Router

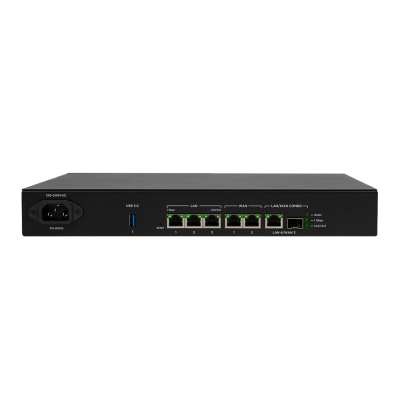

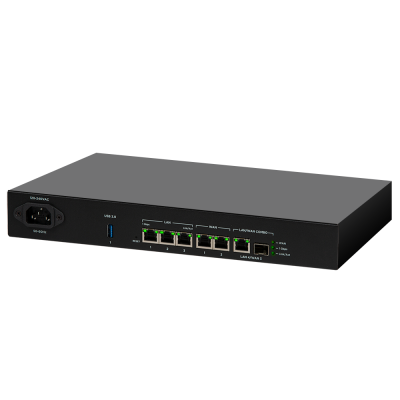

The VPN3000 is a powerful VPN router designed for enterprise offices.  Featuring a dual-core CPU with 880Mhz clock speed, it is truly fast enough for all office applications.  You will also find an exclusive fiber-optic WAN port that can connect directly to the building network structure.


Extensive Surge Protection

The router features an extended 15KV surge protector which doubles the protection compared to other average routers.

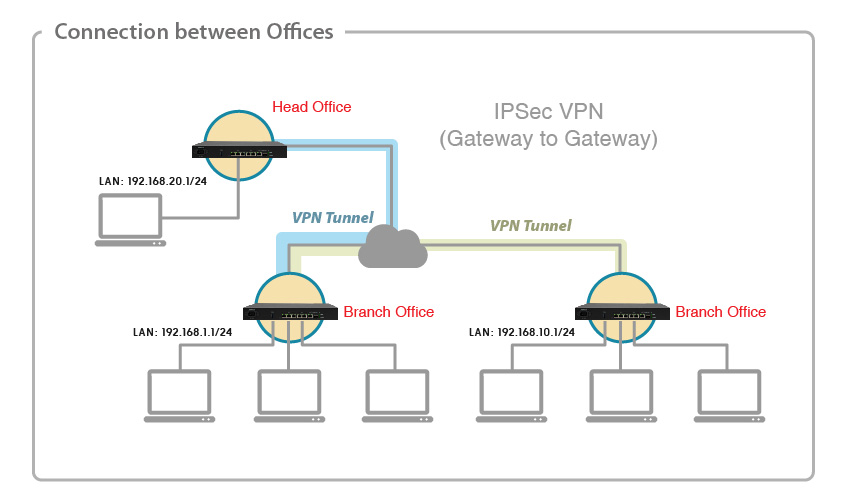

Site to Site VPN

Connect branch offices to the head office through the IPsec VPN feature. The VPN3000 supports more than 20 IPsec tunnels, enough for medium-sized companies to satisfy all necessary connections.

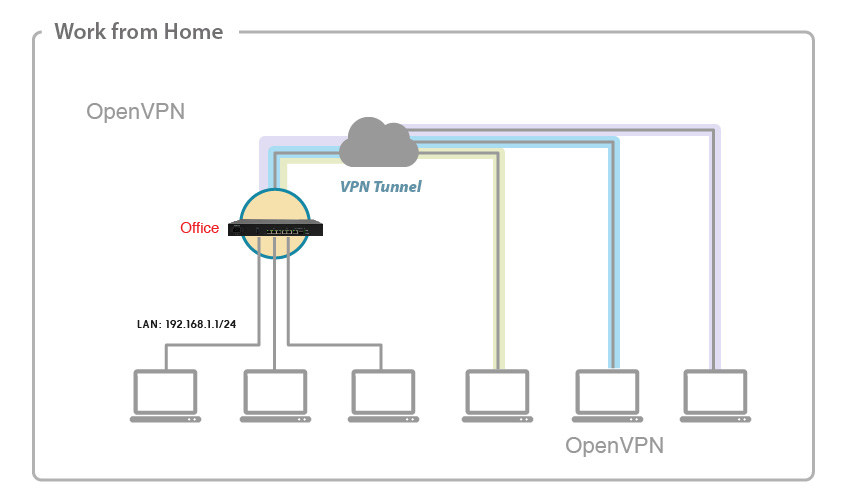

Work From Home With Ease

The VPN3000 is a perfect solution for “work from home”.  Featuring Open VPN Server/Client, meaning that by having just a router at work and a router at home, your employee can start working from home with ease. An Open VPN client software is also available for quick access in addition to using the PPTP dial-up service.
HARDWARE
CPU
MT7621A Dual Core MIPS 1004K 880MHz
Memory
64MB SPI Flash+ 512MB DDR3
Interface
2 x 10/100/1000Mbps WAN Ports
3 x 10/100/1000Mbps LAN Ports
1 x Gigabit SFP WAN Port
Button
Reset button
LED Indicator
Power LED, LAN1, 2, 3 LEDs, WAN1/WAN2 LEDs
Power
Power
Power Saving
802.3az
Mounting
Desk Mount
ESD Surge
15KV Air Surge Protection
Housing
UL94-5VB Flammability Rating
Dimension
13" x 1.73" x 9.05"
SOFTWARE
LAN to LAN Performance
1000Mbps
WAN-to-WAN performance
600Mbps
IPsec Performance
100Mbps
OpenVPN
Server/Client, Up to 20 clients
PPTP
Server/Client
IPsec
Site to Site
MANAGEMENT
Deployment
Standalone AP Mode
Configuration
HTTP / HTTPS
SNMP v1, v2c, v3
OTHERS
Certification
FCC
Environmental Condition
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 90% or Less
