Office/ENP WiFi

VPN5000

Enterprise VPN Gateway

  • Mediatek MT7986A CPU
  • Quad A53@2.0GHz
  • Hardware VPN support
  • USB 3.0 Port
  • 1 x2.5GE LAN/WAN Port
  • 1 SFP/GE Combo WAN Port
  • 3 LAN Ports
  • Open VPN Server/Client Support
  • PPTP Server/Client Support
  • Site-to-Site IPsec VPN support
  • Optional 5G-NR Module
Enterprise VPN Gateway
Inquiry

​VPN 5000 High Performance VPN Router


​High Performance VPN Gateway

The VPN5000 is a powerful VPN router designed for enterprise offices. It features a quad-core A53 CPU with a 2GHz clock speed, making it several times faster than legacy VPN gateways. Additionally, it has a unique fiber optic WAN port, enabling direct fiber connectivity to the building. The USB 3.0 port allows for 4G backup, printer sharing, and storage sharing.


Dual WAN Ports

The VPN5000 features a 1x 2.5GE WAN port and 1 Fiber+Ethernet combo WAN port for load balancing and failover, ensuring a reliable and uninterrupted internet connection.


Hardware Crypto Engine

The VPN5000 features a hardware crypto engine that delivers over ten times the VPN performance compared to legacy VPN routers. It is a high-performance and cost-effective solution for SMB and enterprise gateways.






Working from Home with OpenVPN

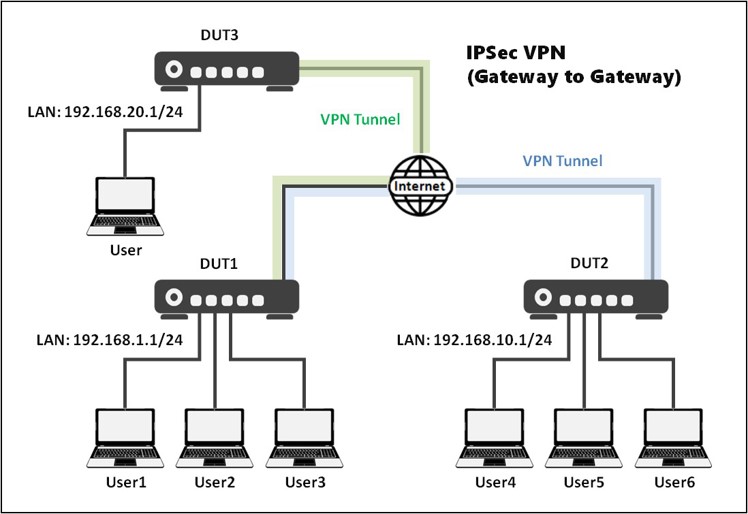

Site to Site VPN


​
Specifications
External Interface
•WAN/LAN RJ-45: 10/100/1000/2500 Base-T: x1
LAN RJ-45: 10/100/1000 Base-T: x3
LAN/WAN - Combo RJ45/SFP 10/100/1000Base-T: x1
USB:x1 (USB 3.0)
•2x SIM slot for redundant
•4x SMA connector for 5G NR antenna
Enclosure
12.99" x 1.73" x 9.05"
Power supply
Internal power supply
120~240V AC in
Operating Temperature
0℃～40℃ / 10～90％RH
VPN Features
Gateway to Gateway IPSec
PPTP Server
OpenVPN
Security Features
Stateful Firewall
Stateful Packet Inspection
DoS Prevention
Ping of Death
SYN Flood
IP Spoofing
Port Forwarding
Content Filtering (URL and Keyword)
UPnP
Bonjour Client
CPU
MTK MT7986A
Switch
MTK MT7531BE
2.5G PHY
Maxlinear GPY211
Memory
DDR4  1x 512MB
NAND Flash 256MB
Optional 5G NR module
XSquare XS5G03 M.2 module
• MTK T700
• M.2 form factor
• NSA bands: n1/3/5/7/8/20/28/38/40/41/77/78
• SA bands: n1/3/5/7/8/20/28/38/40/41/77/78
