Office/ENP WiFi

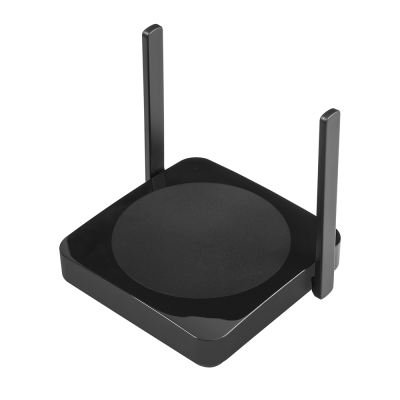

WP-1910GRX

AC1200 4K Wireless Multimedia Box

  • AC1200 Wireless LAN Dual Band Concurrent MU-MIMO Router  Embedded*
  • Multiple Platform Device & Max Compatibility


Inquiry


​

Universal multimedia box to expand your home entertainment

The WP-1910GRX  Wireless Projection System series offers efficiency and creativity with  unprecedented 4K HD wireless multimedia solution for mirror and cast using . Unique features  such as BYOD multi-device, multi-platform and dual-way interactive connectivity that brings next-gen presentation methods to reality.
Turn your HDTV into a smart TV with Multimedia Box and expand your home entertainment with unlimited contents. Support all popular OS devie and provide dual band 2.4g/5g Wi-Fi together, you can use your smartphone and laptops to create limitless entertainments and service all Wi-Fi client simultaneously.

It can connect to any b/g/n wireless router then extend wireless coverage and enhance wireless signal at the poor signal or low data rate area of your existing wireless network, allowing more users enjoying  high bandwidth wireless connection without cable burden and any interruption.
AC1200 Wireless 4K Multimedia Box
Frequency Band
2.4000~2.4835GHz (Industrial Scientific Medical Band)
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps;
11b: 1/2/5.5/11Mbps; 11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps
Output Power
2.4GHz: 11b(11M): 18±1.5dBm , 11g(54M): 16±1.5dBm
11n(20MHz, MCS7): 15±1.5dBm,
11n(40MHz, MCS7): 15±1.5dBm
5GHz: 11a(54M): 15±1.5 dBm,
11n(20MHz, MCS7): 14±1.5 dBm,
11n(40MHz, MCS7): 14±1.5dBm,
11ac(80MHz, VHTMCS9): 11±1.5dBm
Receiver Sensitivity
2.4GHz: 11b(11M): -79±2dBm, 11g(54M): -67±2dBm
11n(20MHz, MCS7): -66±2dBm,
11n(40MHz, MCS7): -63±2dBm
5GHz: 11a(54M): -67±2dBm, 11n(20MHz, MCS7): -67±2dBm,
11n(40MHz,MCS7): -65±2dBm,
11ac(80MHz,VHTMCS9): -56±2dBm
Antenna
External Antenna x 2
Ethernet
10M/100M/1000M Ethernet
Mode
Router / Access Point Mode
Video Interface
HDMI(HDCP 1.4)
Resolution
4k / 30fps
Power Interface
DC12V / 1.5A
Temperature
Operating: 32~104°F (0~40°C)
Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Dimension
120mm x 120mm x 25.8mm
