Switch & Ethernet

IG28CB

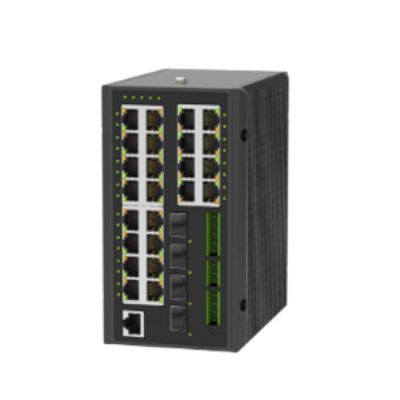

24-Port Gigabit Industrial PoE++ Managed Switch with 4-Port 10G SFP+

  • 24 x Gigabit Ethernet ports + 4 x 10G SFP+ fiber ports, with 24-port PoE capability
  • Equipped with RTL9311BRI + RTL8218EI x3 chipsets for high-performance switching
  • Integrated IP8008 x6 PSE chipsets, supporting IEEE 802.3af/at/bt PoE++ standards
  • Supports ERPS v2 for enhanced network redundancy
  • 2 x Digital Inputs (DI) and console port for flexible management
  • Slim-size design with DIN-rail mounting and IP40-rated metal housing
  • Supports redundant 48~57V DC power input for continuous operation
  • Wide operating temperature range: -40~75°C, ideal for industrial environments
  • Wall-mount installation option for versatile deployment
  • Dimensions: 155 x 129 x 89 mm, space-efficient industrial design
24-Port
4-Port 10G SFP+
Industrial
PoE++
Managed
Redundant Power
Wall-Mount
IP40
-40~75°C
Inquiry
