Switch & Ethernet

IM098B

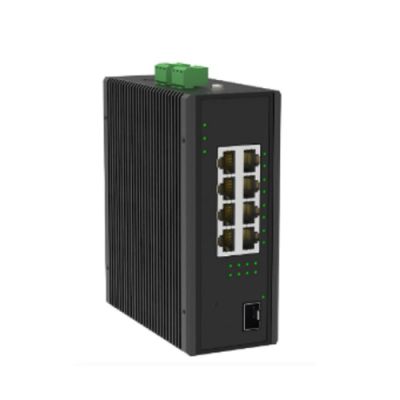

8-Port 2.5G Industrial PoE++ Switch with 1-Port 10G SFP+

  • 8 x 2.5 Gigabit Ethernet ports + 1 x 10G SFP+ fiber port
  • Equipped with RTL8373I + RTL8224I chipsets for high-speed and stable performance
  • Integrated IP8008 x2 PSE chipsets, supporting IEEE 802.3af/at/bt PoE++ standards
  • Supports loop prevention to ensure network stability
  • Supports relay function for enhanced alarm and event notification
  • Slim-size design with DIN-rail mounting and IP40-rated metal housing
  • Supports redundant 24~57V DC power input for uninterrupted operation
  • Wide operating temperature range: -40~75°C, ideal for harsh industrial environments
  • Wall-mount installation option for flexible deployment
  • Dimensions: 128 x 124 x 73 mm, compact industrial design
8-Port 2.5GbE
1-Port 10G SFP+
Industrial
PoE++
Redundant Power
Wall-Mount
IP40
-40~75°C
