PG054C

5-Port Gigabit Long-Distance PoE+ Switch with 4-Port PoE+ & DIP Switch

  • 5 x Gigabit Ethernet RJ45 ports, including 4 x PoE+ ports
  • Equipped with RTL8367N switching chipset for stable performance
  • Integrated IP804AR PoE controller, supporting IEEE 802.3af/at PoE+ standards
  • Provides up to 30W per PoE port, with a total PoE power budget of 70W (alert at 60W)
  • Supports long-distance PoE power transmission for extended deployments
  • Fanless design for silent operation
  • Built-in internal power supply for reliable operation
  • Dimensions: 215 x 133 x 42 mm (8.5”), compact form factor for flexible installation
5-Port GbE
4-Port PoE+
DIP Switch
8.5" Rack-Mount
Fanless
Internal Power
Inquiry

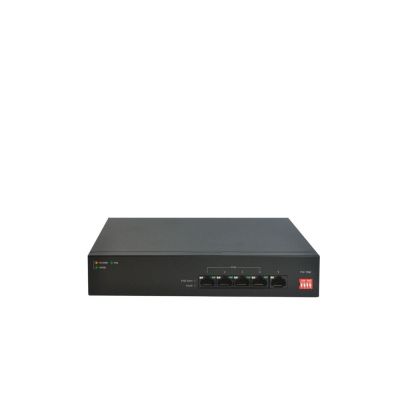

The PG054C is an advanced fanless Power-over-Ethernet (PoE) switch featuring 5 Gigabit Ethernet ports, including 4 PoE-enabled ports. It is specifically designed for connecting devices such as IP cameras, Wi-Fi access points, and other network equipment. The switch provides a total PoE power budget of 70W, with each PoE port (PSE) delivering up to 30W, fully compliant with the IEEE 802.3at standard.
HARDWARE
Switch Controller
Realtek RTL8367N
PoE
IC Plus IP804
FAN
Fanless
