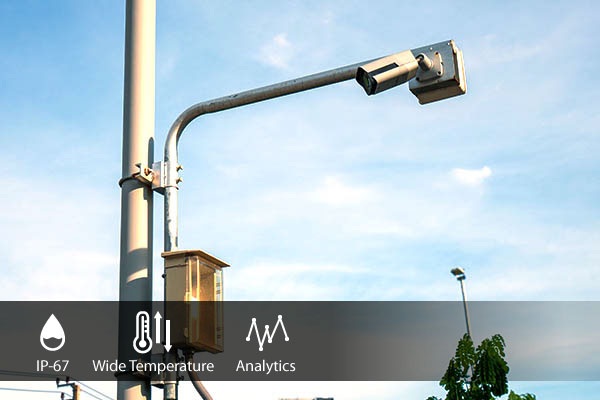

Harsh Environments

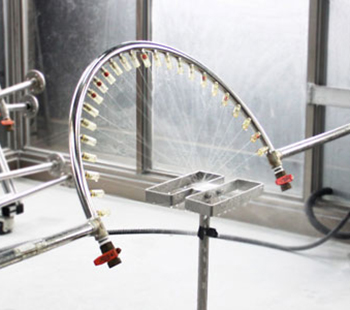

Durable design and test proofed for industrial usage

Harsh Industrial Network Solution

Because of the advances in Industry 4.0 and electric automobile, the global demand for industrial networking equipment has increased at over 15% annually. That’s why Acelink has developed the comprehensive industrial switches, 5G gateway and wireless APs that can operate in factories, automobiles, and C1D2 compliant hazardous environments.

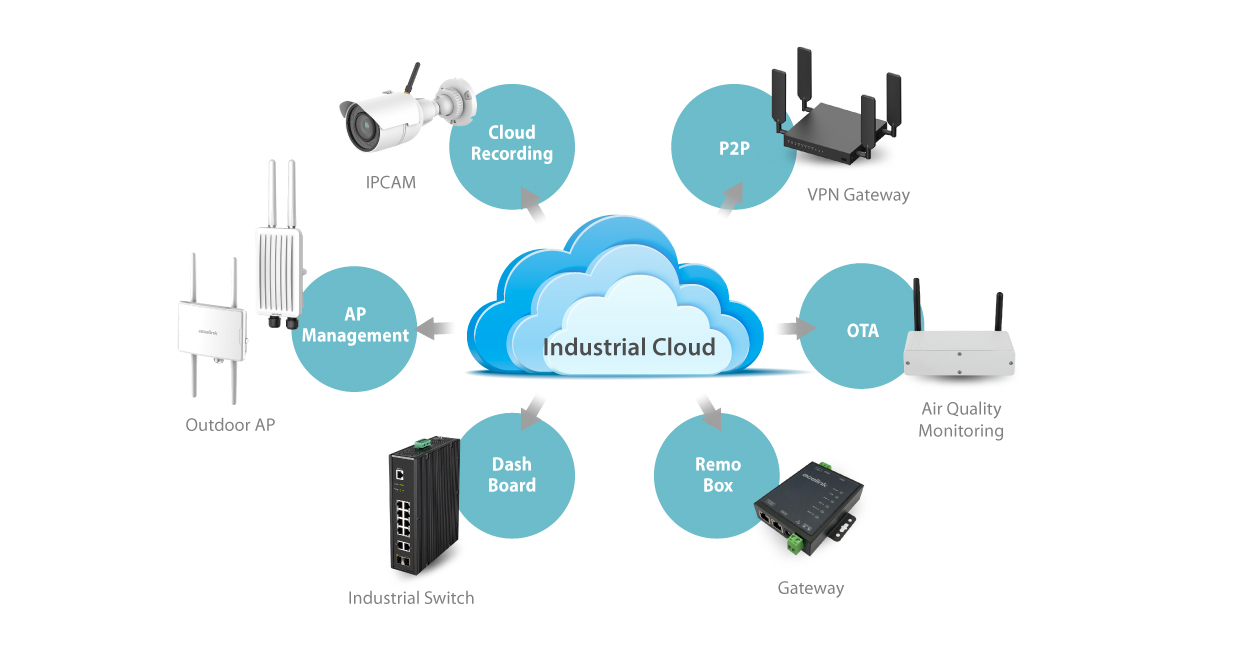

Harsh Networking Cloud Structure

Industrial Products

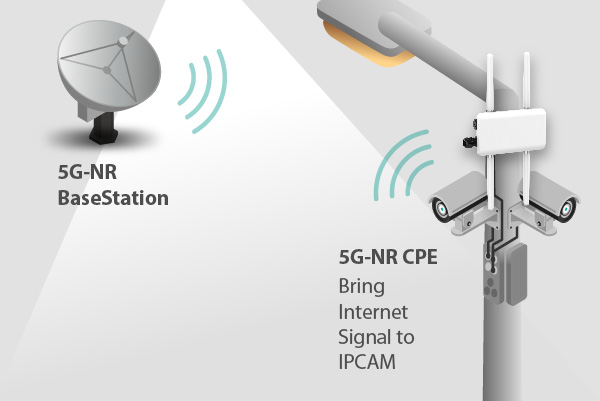

WAN: 5G-NR CPE & AP in WISP Mode

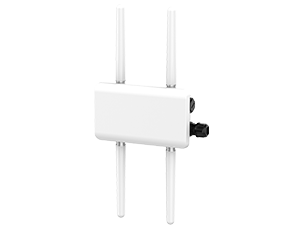

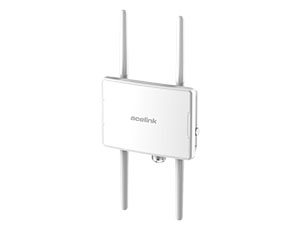

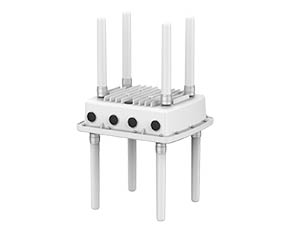

IP-67 5G-NR Outdoor CPE

5G-NR Signal Booster/Ethernet Converter

Sub 6GHz

MTK T750

802.3at PoE

2.5GE LAN

IP67

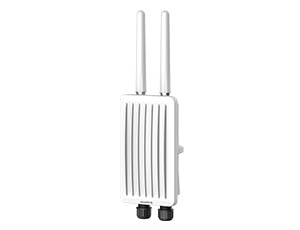

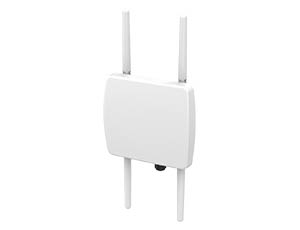

WiFi AP with WISP Mode

Share WiFi Internet Signal

AX3000

2.4GHz and 5GHz

WISP Router Mode

IP-67

Qualcomm Maple

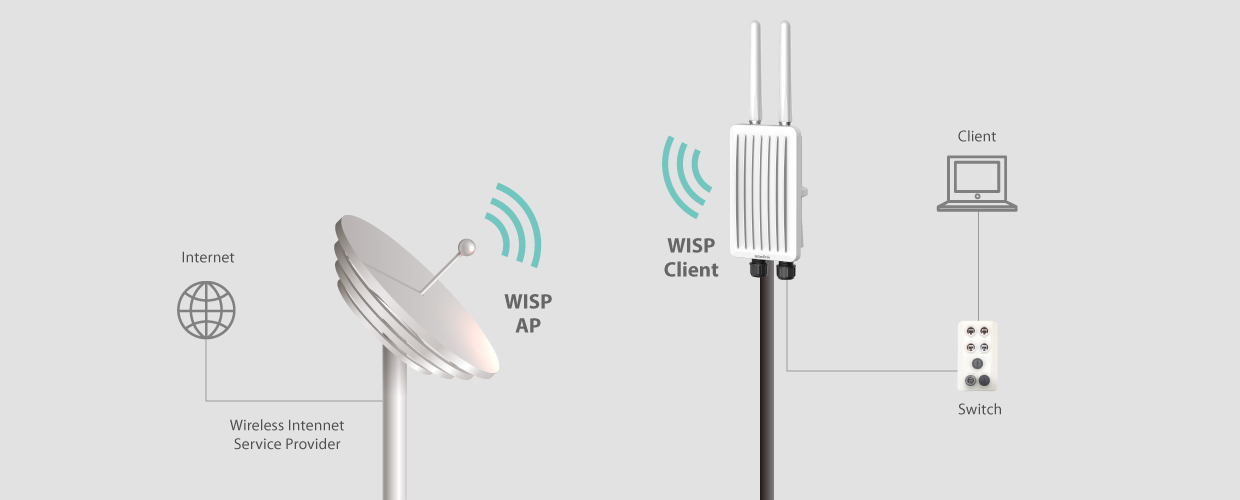

WAN: AP in WISP Application

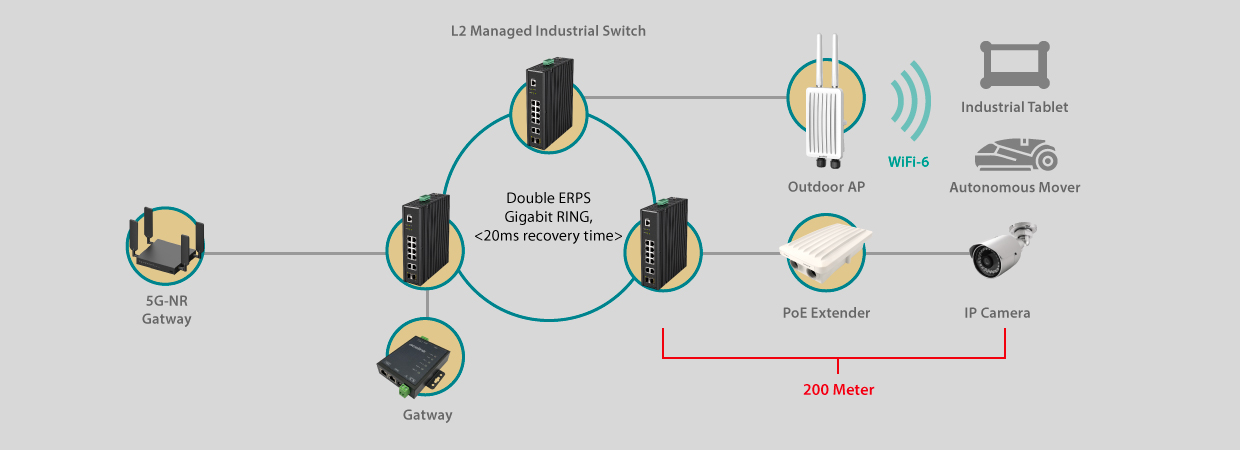

LAN: Wireless & Wired Structure

Wireless LAN

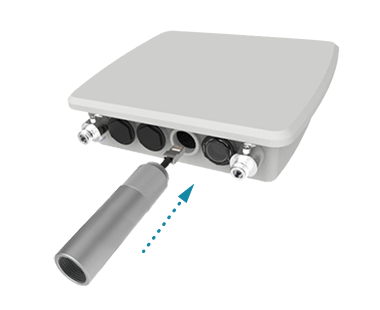

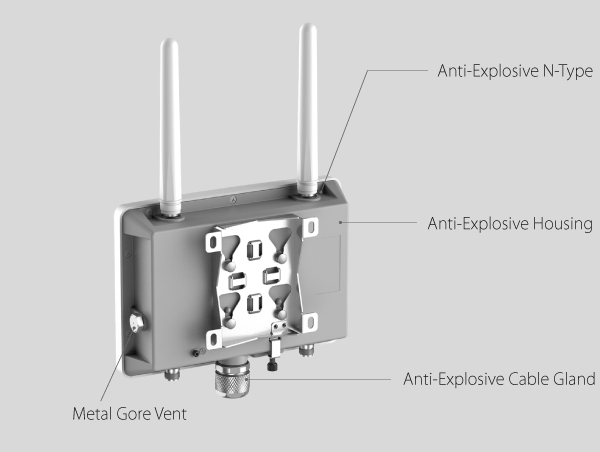

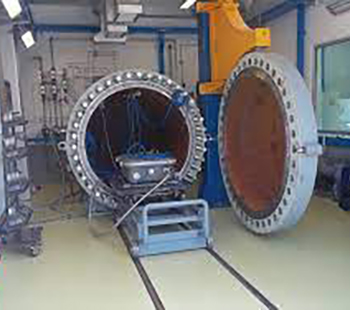

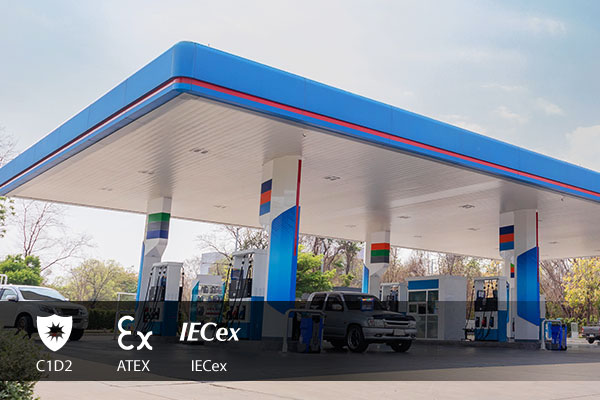

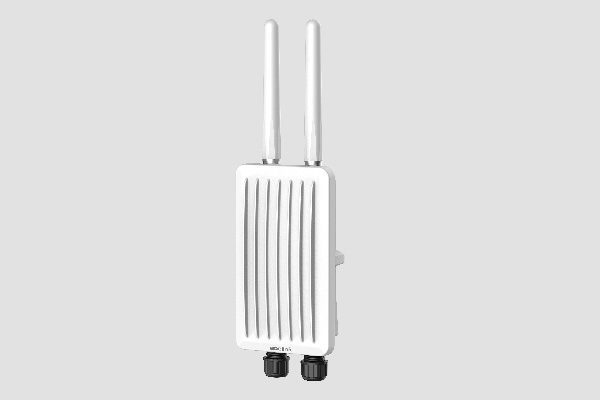

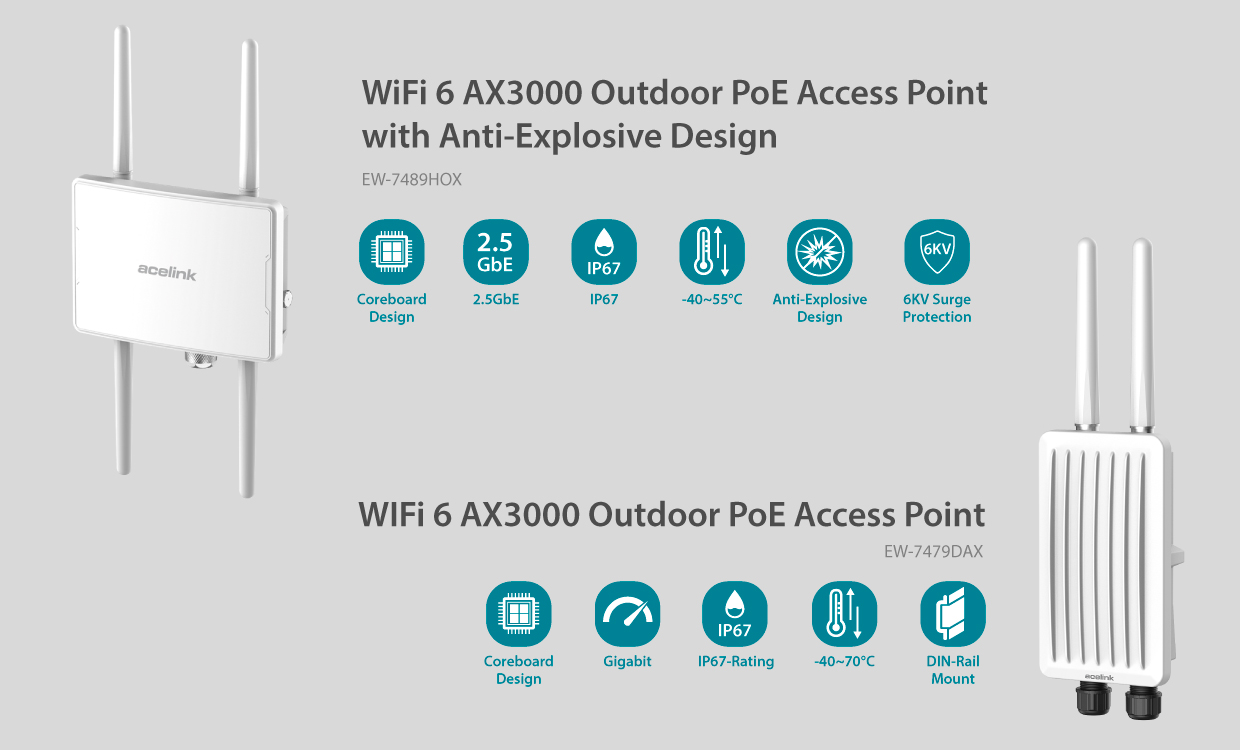

Outdoor AP Anti-Explosive Design

Class 1 - Flammable vapors or gases are the present hazard.
Class 2 - Combustible dust is present.
Class 3 - Easily ignitable fibers or flyings in air.
Division 1 – Hazard is present during normal operating conditions. This can be caused due to frequent maintenance or equipment failure.
Division 2 – Hazard is present, but in closed canisters or systems, and are only exposed through system failures or ruptures.

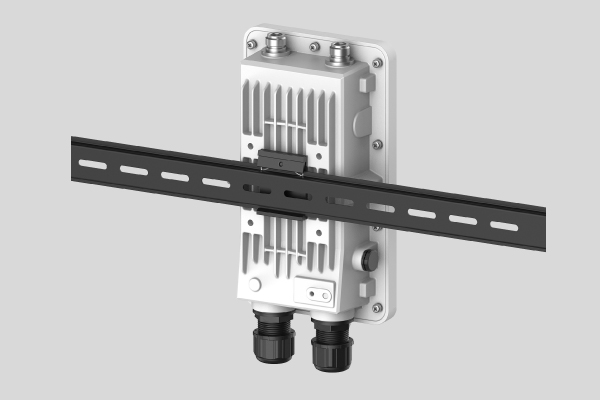

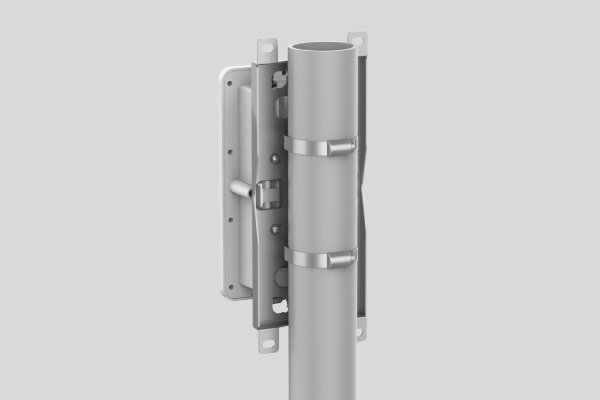

Outdoor AP DIN-Rail or Pole Mount

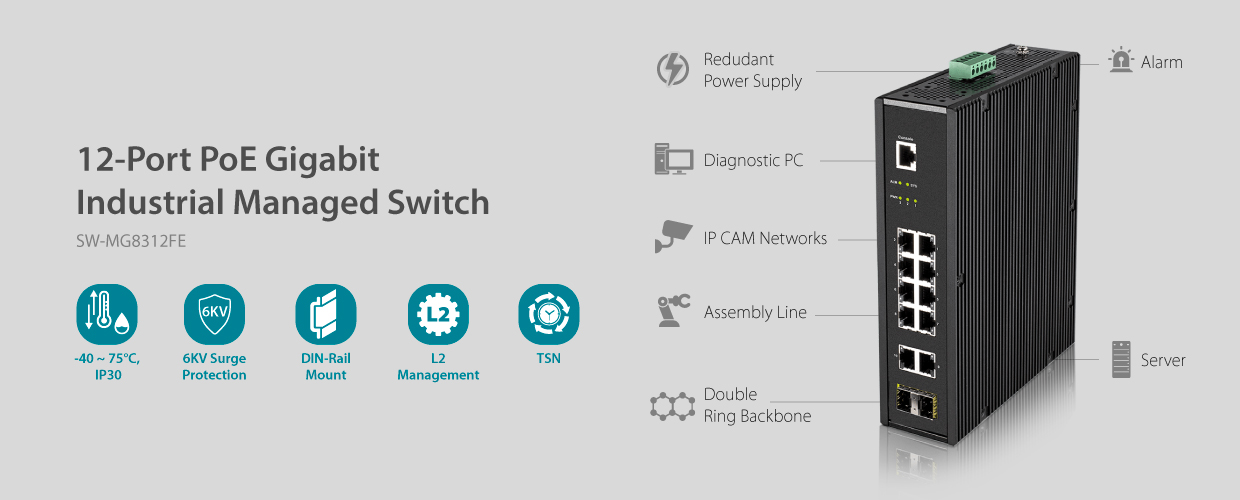

Wired LAN

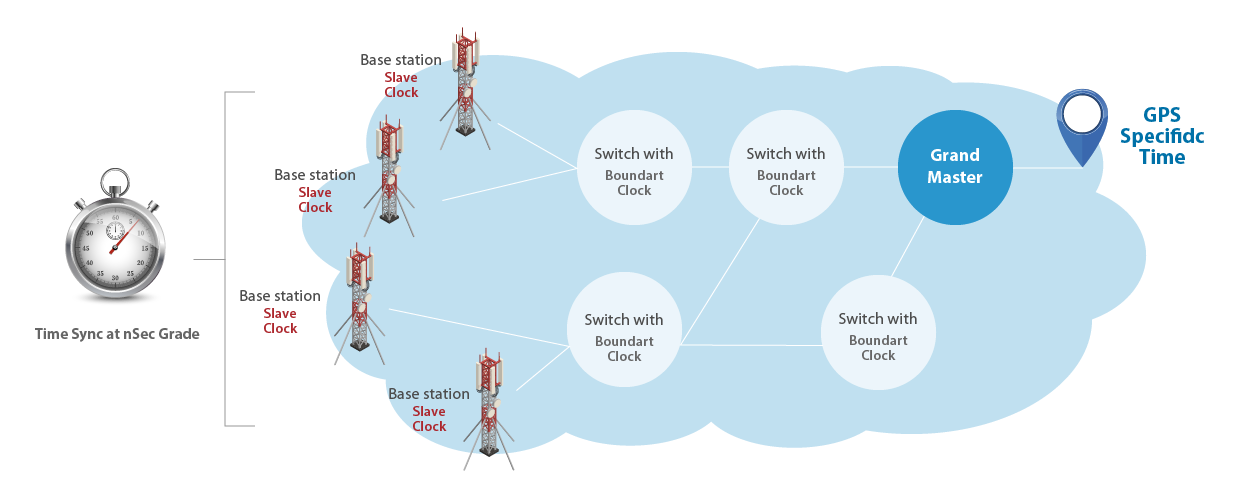

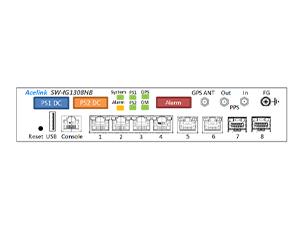

TSN: Time Synchronization

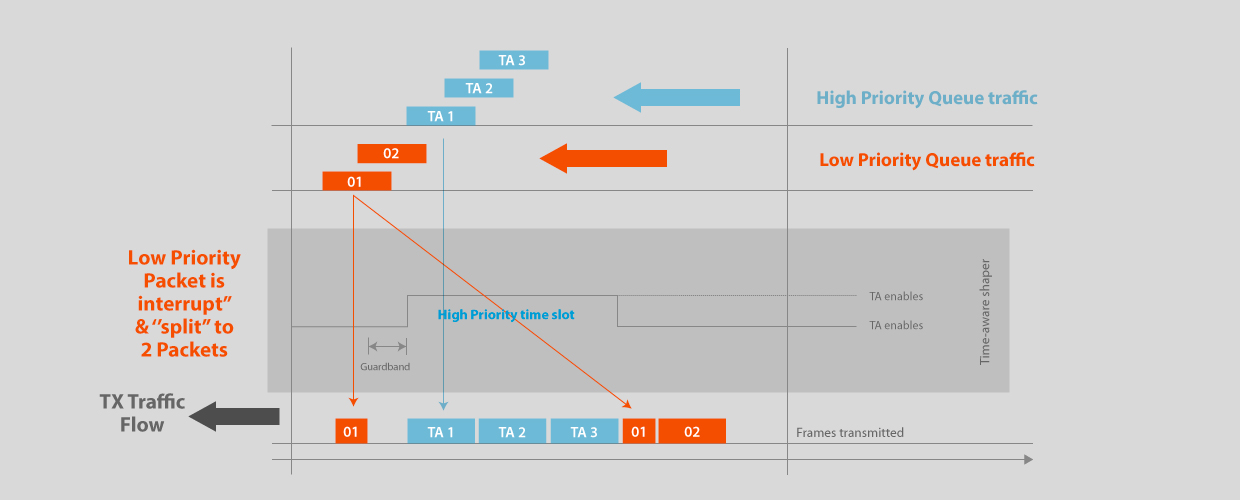

TSN: Preemption for Time Related Traffic

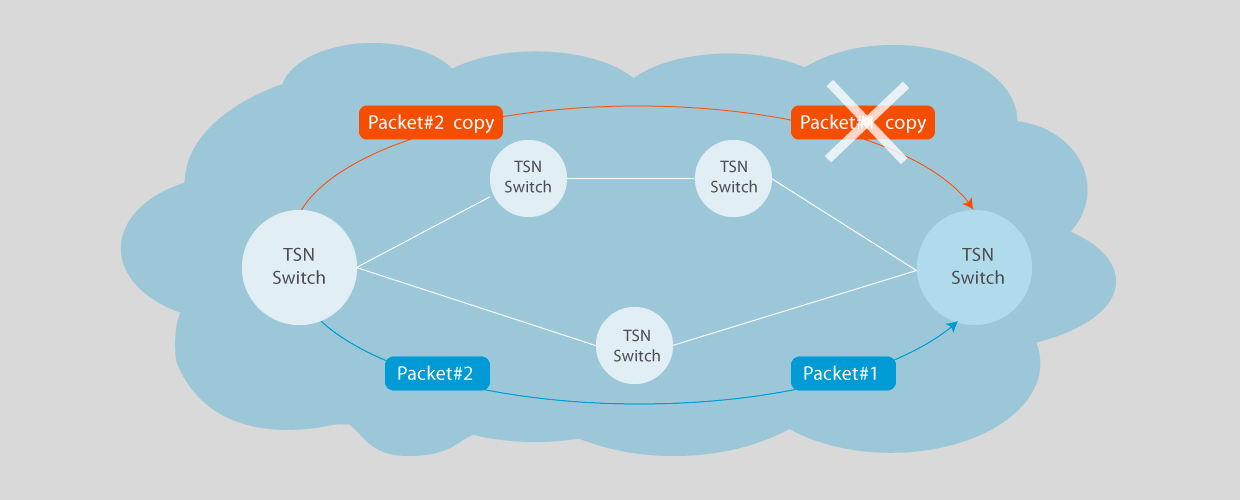

TSN: Seamless Redundancy

PTP (Precision Time Protocol) IEEE1588 Demo Video

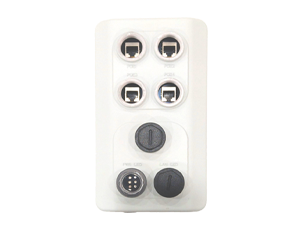

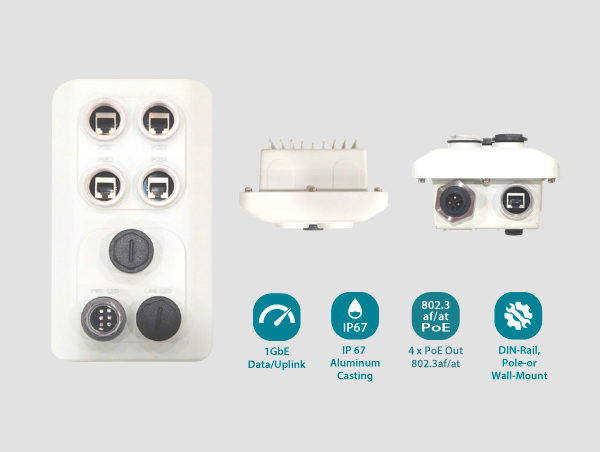

Outdoor PoE Switch

5-Port Gigabit with 4-Port PoE
Plug-and-Play, Unmanaged
PoE for 802.3af/at (30W per port, total PoE power budget up to 60W)
External Power to reduce the thermal influence of the device
Aluminum casting housing, support IP67
Flexible depolyment with various mounting kits (wall-mount, pole-mount, DIN-rail)

Outdoor PoE Switch Application

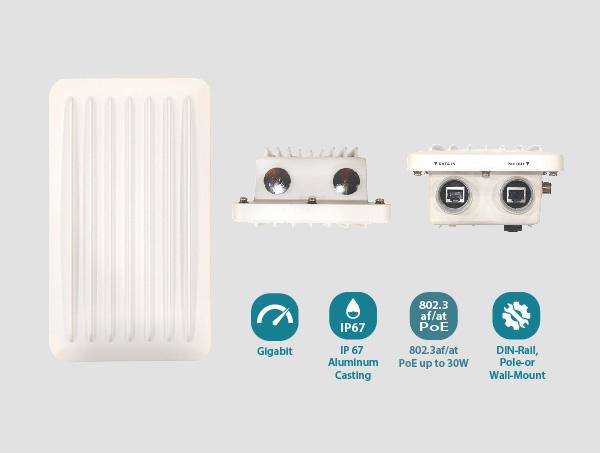

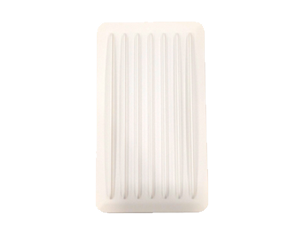

Outdoor PoE Extender

Compliant with IEEE 802.3at /af
Complies with IEEE 802.3/802.3u/802.3ab 10/100/1000BASE-T
Plug-and-Play
Extends the range of PoE to more than 100 meters , No external power cable installation required
Aluminum casting housing, support IP67
Flexible depolyment with various mounting kits (wall-mount, pole-mount, DIN-RAIL)

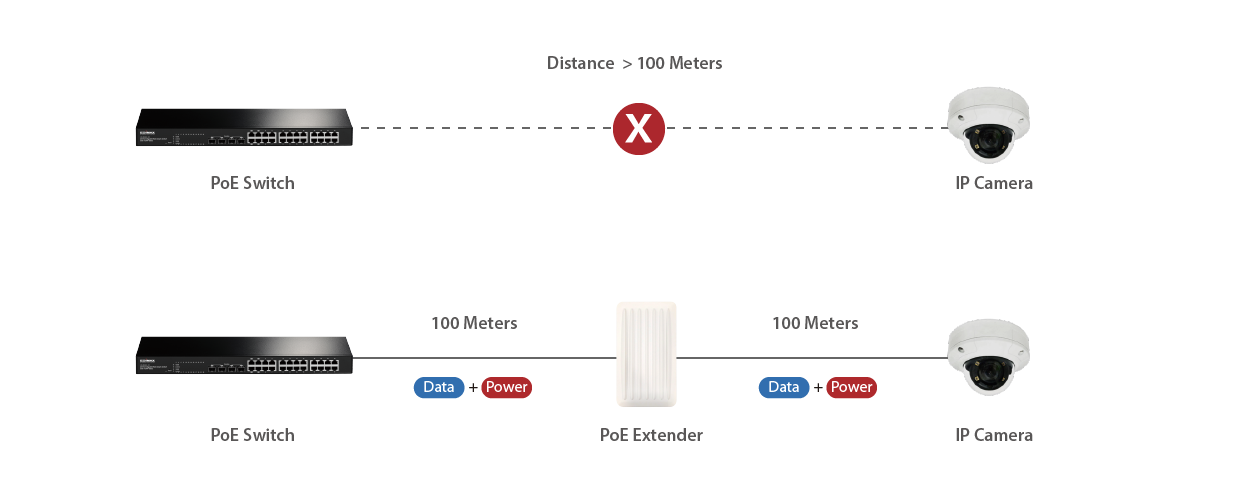

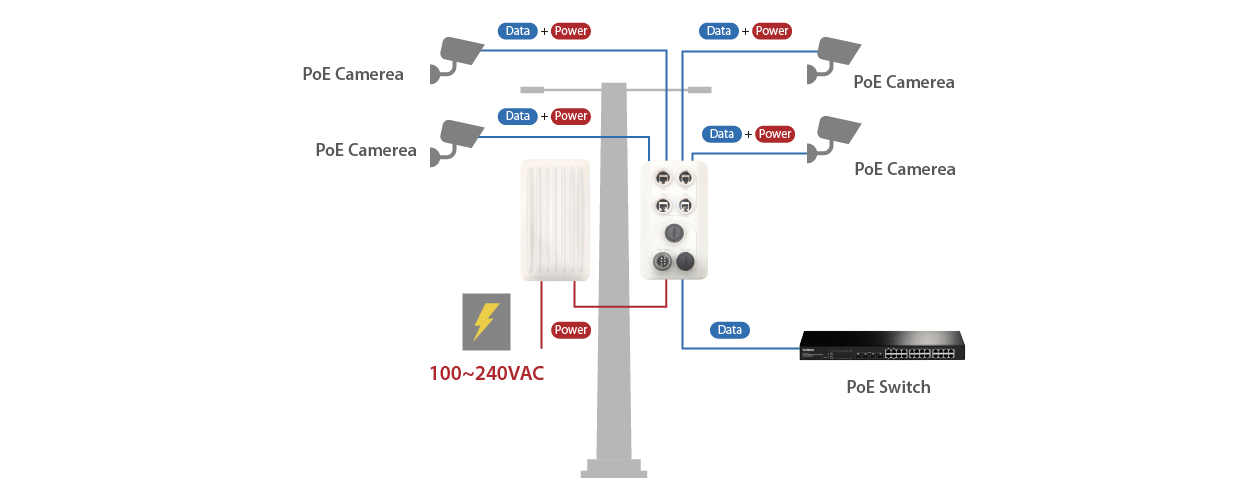

Outdoor PoE Extender Application

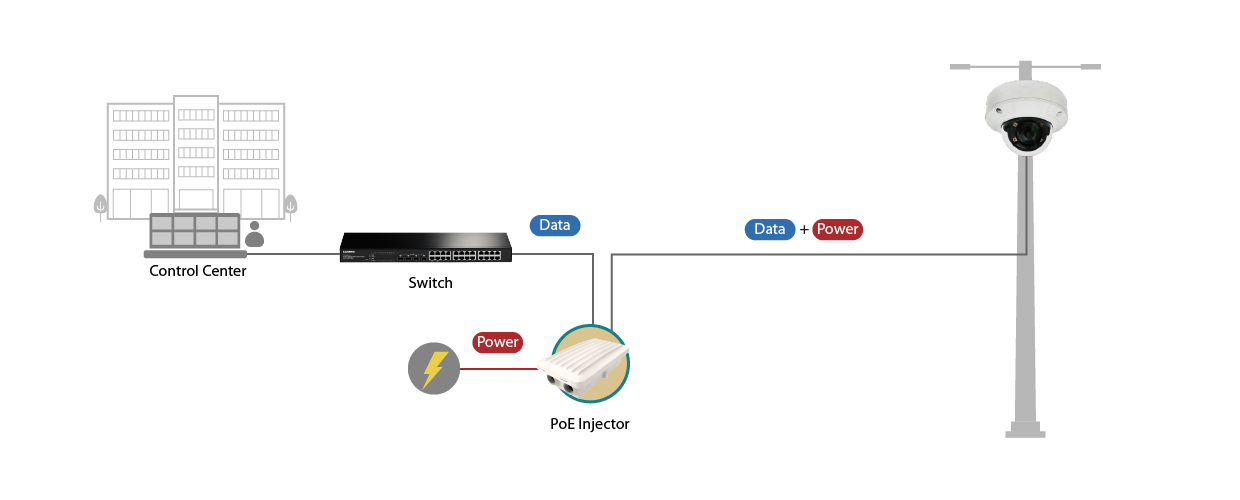

Outdoor PoE Injector

PI-10000OPB Outdoor 10GbE PoE Injector
- IEEE 802.3an 10GBase-T, compatible with 2.5G/1G/100Mbps
- PoE for 802.3af/at/bt type3 (max 60W)
PI-2500OPA Outdoor 2.5GbE PoE Injector
- IEEE 802.3bz 2.5GBase-T, compatible with 1000M/100Mbps
- PoE for 802.3af/at (30W)
Aluminum casting housing, support IP67
Flexible deployment with various mounting kits (wall-mount, pole-mount, DIN-RAIL)
