Business/Office

5G-NR Office Deployment

With the introduction of the fast 5G-NR, it is now possible to use the mobile network as the primary internet connection. Acelink offers the complete line of 5G-NR, Wireless AP, and Ethernet switches to satisfy the office network deployment.

Product Solution Range

With the introduction of the fast 5G-NR, it is now possible to use the mobile network as the primary internet connection. Acelink offers the complete line of 5G-NR, Wireless AP, and Ethernet switches to satisfy the office network deployment.

  • 5G NR CPE

    5G-NR can provide Internet connection at over 1Gbps. It is suitable as the main WAN connection for the Office. However, since the 5G-NR is using higher frequency band such as millimeter wave. The transmission distance is very limited. That’s why you need Acelink’s 5G-NR Outdoor CPE to bring the outdoor 5G-NR signal to the indoor.

  • Wireless AP

    AceLink offers a wide range of wireless indoor and outdoor AP. For indoor application, you can use our WiFi-6 Ceiling Mount AP to accommodate maximum amount of users and fast bandwidth. In warehouse area, you can use our outdoor AP which has wide coverage and weather proof.

  • Ethernet Switches

    For Office environment, Acelink offers an complete line up of Ethernet switches and PoE switches. From 24-port PoE switch to Gigabit switch with 10G up link, the product provide maximum performance and cost effective solution for your office.

Connection Diagram

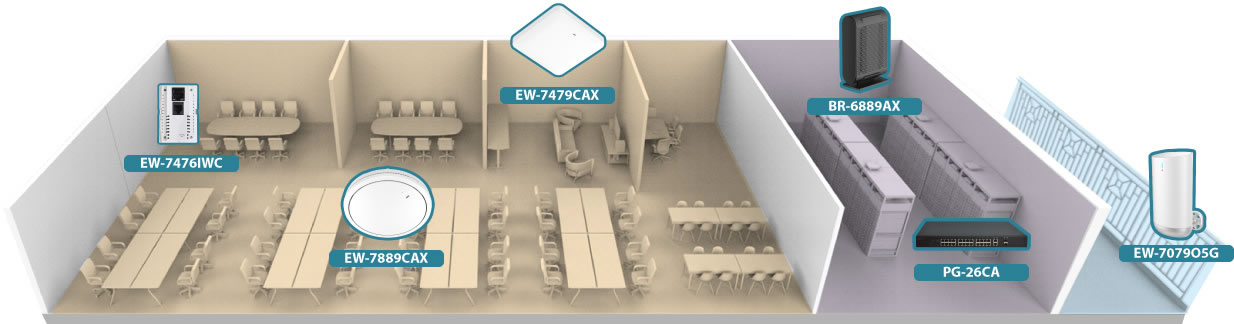

Main Office Solution

The office Internet is powered by the EW-7079O5G 5G-NR outdoor AP that deliver up to 10 Gigabit of throughput to the BR-6889AX router with dual 10GE WAN port. The bandwidth is then distributed to the PG-26CA PoE switch which power the WiFi-6 PoE ceiling APs and a WiFi-5 in-wall AP.

  • 5G NR CPE

    EW-7079O5G

    Outdoor 5G-NR CPE that support up to 20Gbps of Internet Speed

    more
  • PoE Switch

    PG-26CA

    24-port Gigabit PoE Switch that support 802.3at PoE power for PoE AP

    more

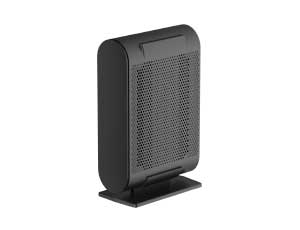

  • 10G Router

    BR-6889AX

    4T4R AX router. with 2 x 10GE WAN ports for 5G-NR connection

    more

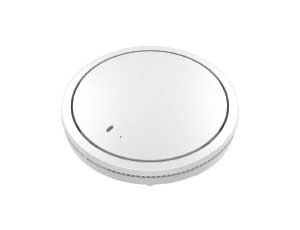

  • AX3600 AP

    EW-7889CAX

    The 4T4R WiFi 6 Ceiling AP provide up to 250 users per AP for Internet Access

    more

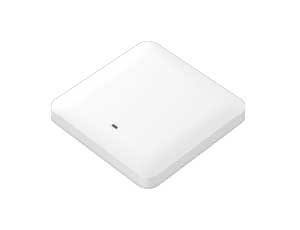

  • AX1800AP

    EW-7479CAX

    The 2T2R WiFi 6 cost effective Ceiling Mount AP

    more

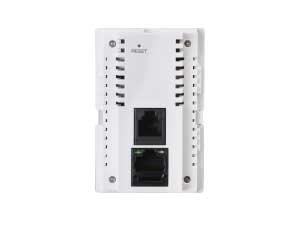

  • AC1200 AP

    EW-7476IWC

    The 2T2R AC1200 In-Wall AP that fits completely to the decoration

    more

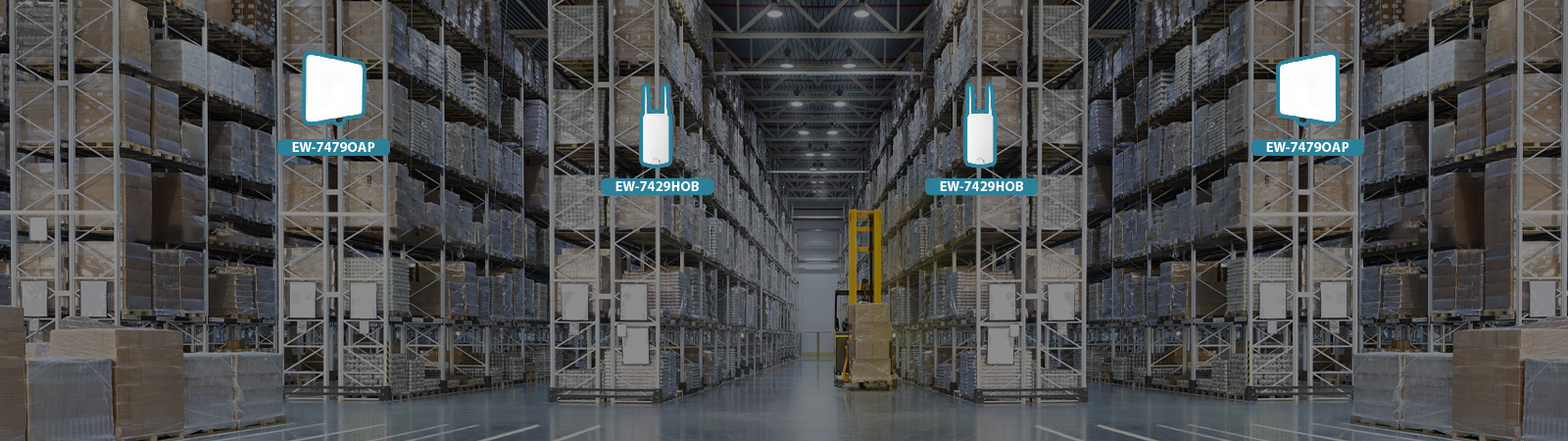

Warehouse Solution

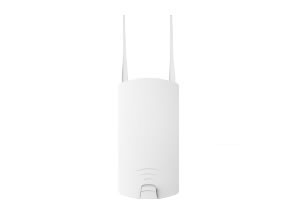

  • AC1300 AP

    EW-7429HOB

    2T2R AC1300 Outdoor AP that provides wireless network in the warehouse

    more

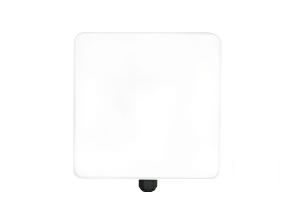

  • AC1300CPE

    EW-7479OAP

    The IP-67 outdoor AC1300 CPE can perform as a CPE or Bridge to connect with main office’s network

    more

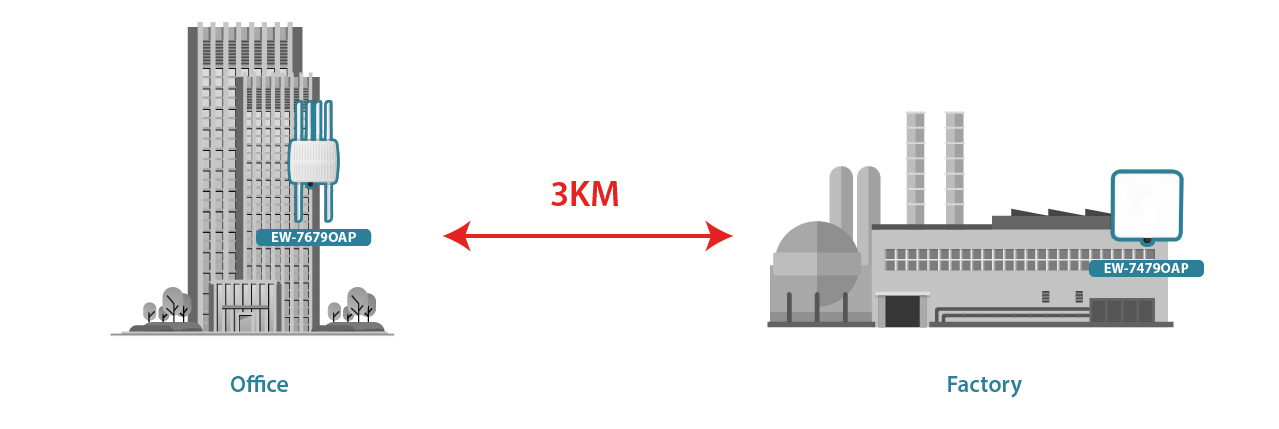

Office-To-Factory Outdoor Solution

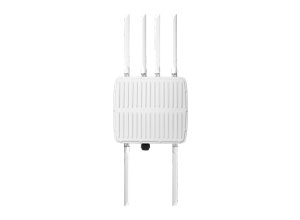

  • AC1750 AP

    EW-7679OAP

    The IP-67 outdoor AC1750 can perform as a CPE or Bridge to connect with remote factory

    more

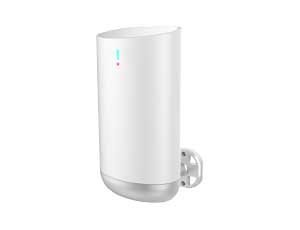

  • AC1300CPE

    EW-7479OAP

    The IP-67 outdoor AC1300 CPE can perform as a CPE or Bridge to connect with main office’s network

    more
